CornerWRAP – Heavy Duty

Product Details

Heavy duty corner protection for exposed building edges

Exposed corners in car parks, loading areas and industrial buildings are often vulnerable to repeated impact. Vehicle bumpers, doors, trolleys, cages and operational traffic can all strike building corners during everyday movement. Over time, this can damage the building fabric and increase maintenance costs.

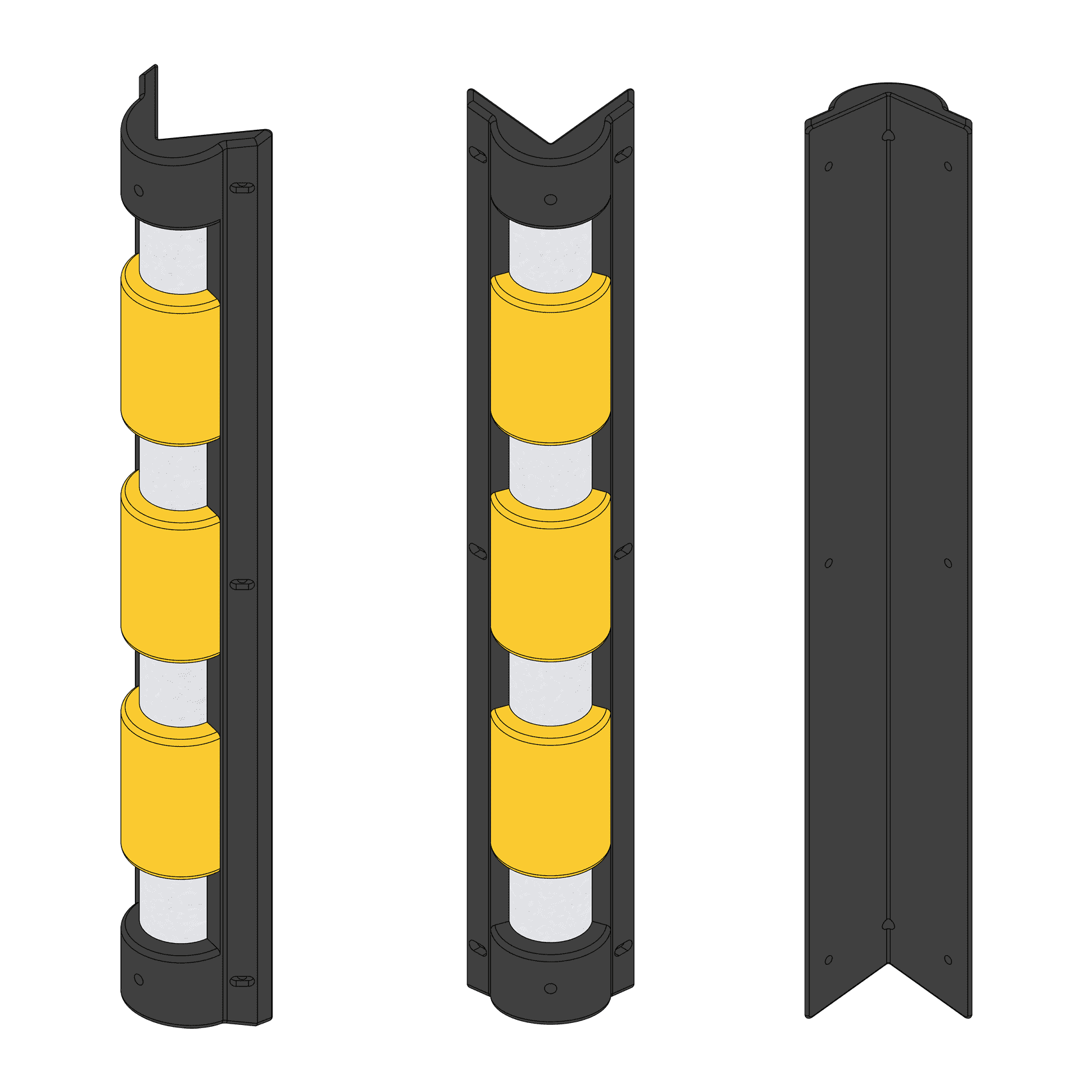

CornerWRAP, Heavy Duty, provides a stronger physical protection measure for these higher-risk areas. The heavy duty polymer moulding wraps around vulnerable corners, while the yellow polyurethane buffers help cushion impact. This makes exposed corners more visible and better protected from repeated contact.

Polyvinyl housing with polyurethane buffers

Heavy duty corner protection needs to do more than mark a vulnerable edge. It needs to provide visible protection and help manage impact at the point of contact. CornerWRAP, Heavy Duty, combines a polyvinyl polymer housing with yellow polyurethane buffers to support heavy duty corner protection in demanding areas.

The protector is suitable for concrete columns, steel, brick, block, precast concrete walls and steel-clad beams. This makes it useful across basement car parks, commercial buildings, warehouses, service areas and industrial sites where exposed corners face regular contact from vehicles or equipment.

High-visibility finish with diamond grade reflectors

Corners near vehicle routes, parking areas and service spaces need to be easy to see. The yellow and black finish gives CornerWRAP a high-visibility appearance, helping drivers, pedestrians and site teams identify the protected edge before contact occurs.

Each CornerWRAP, Heavy Duty, protector incorporates 4x silver diamond grade reflective bands. These improve visibility in low-light areas and at night, which is especially useful in basement car parks and external service areas. As a result, the product protects the corner and makes the hazard easier to identify.

890mm heavy duty profile

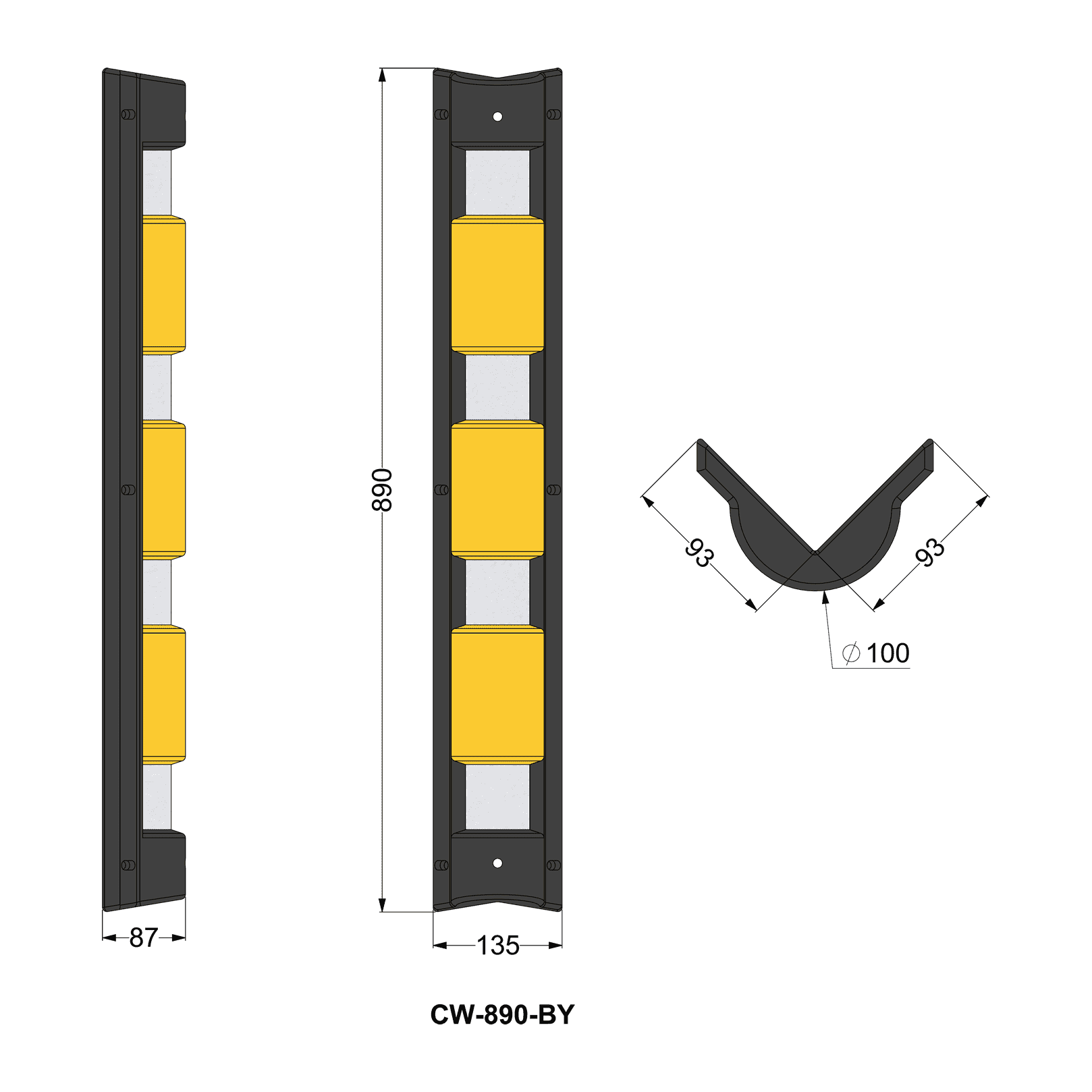

CornerWRAP, Heavy Duty, is 890mm long and designed for heavy duty protection requirements. The 93mm x 93mm flange profile wraps around the corner, creating visible protection on both exposed faces.

The protector includes 6x fixing holes and uses 6x No.12 fixings for installation to suitable brick, block or precast concrete surfaces. It can also be fitted to concrete columns, steel and other suitable substrates, although fixing requirements may vary by site. Contact our team for advice on bespoke fixing solutions.

Where CornerWRAP, Heavy Duty, is specified

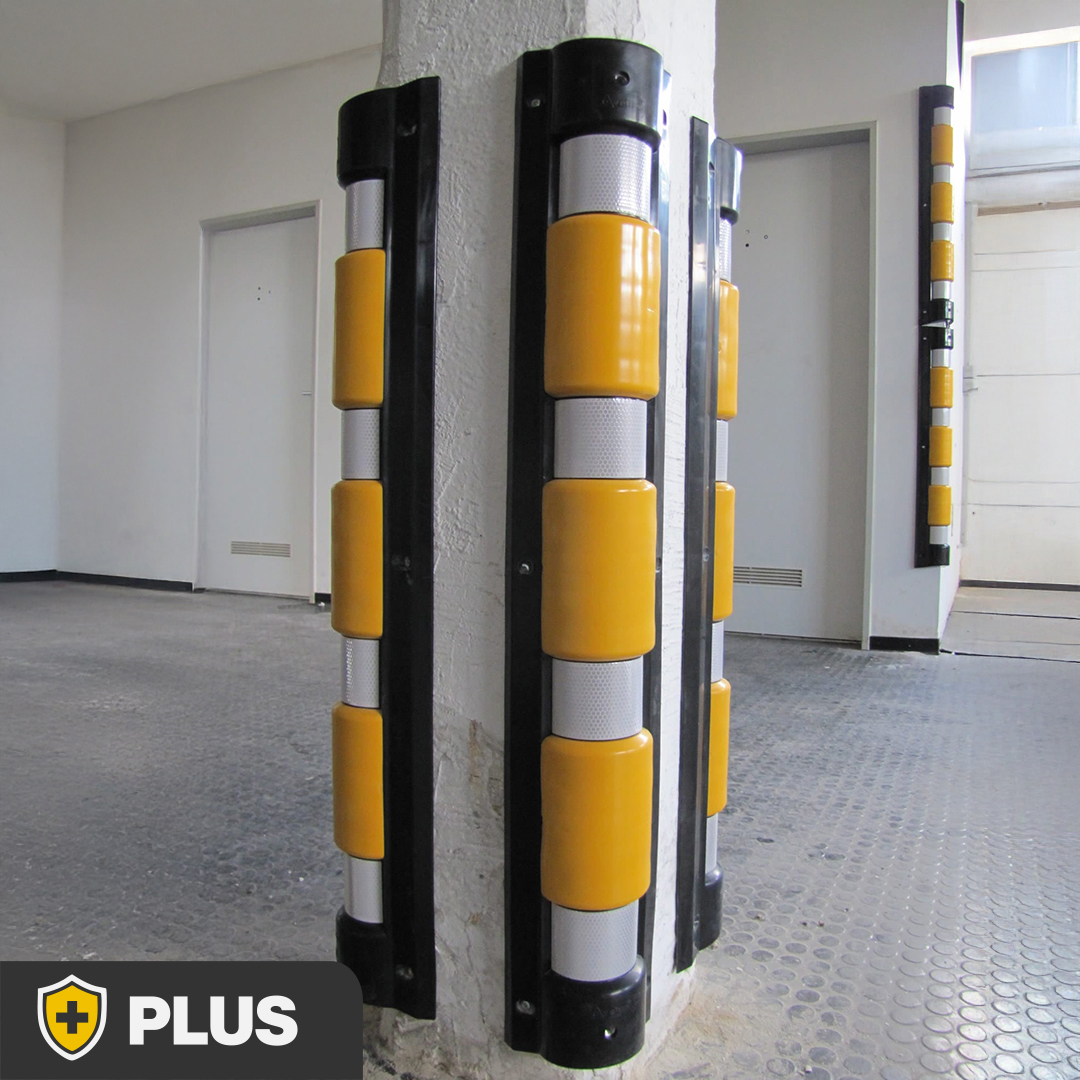

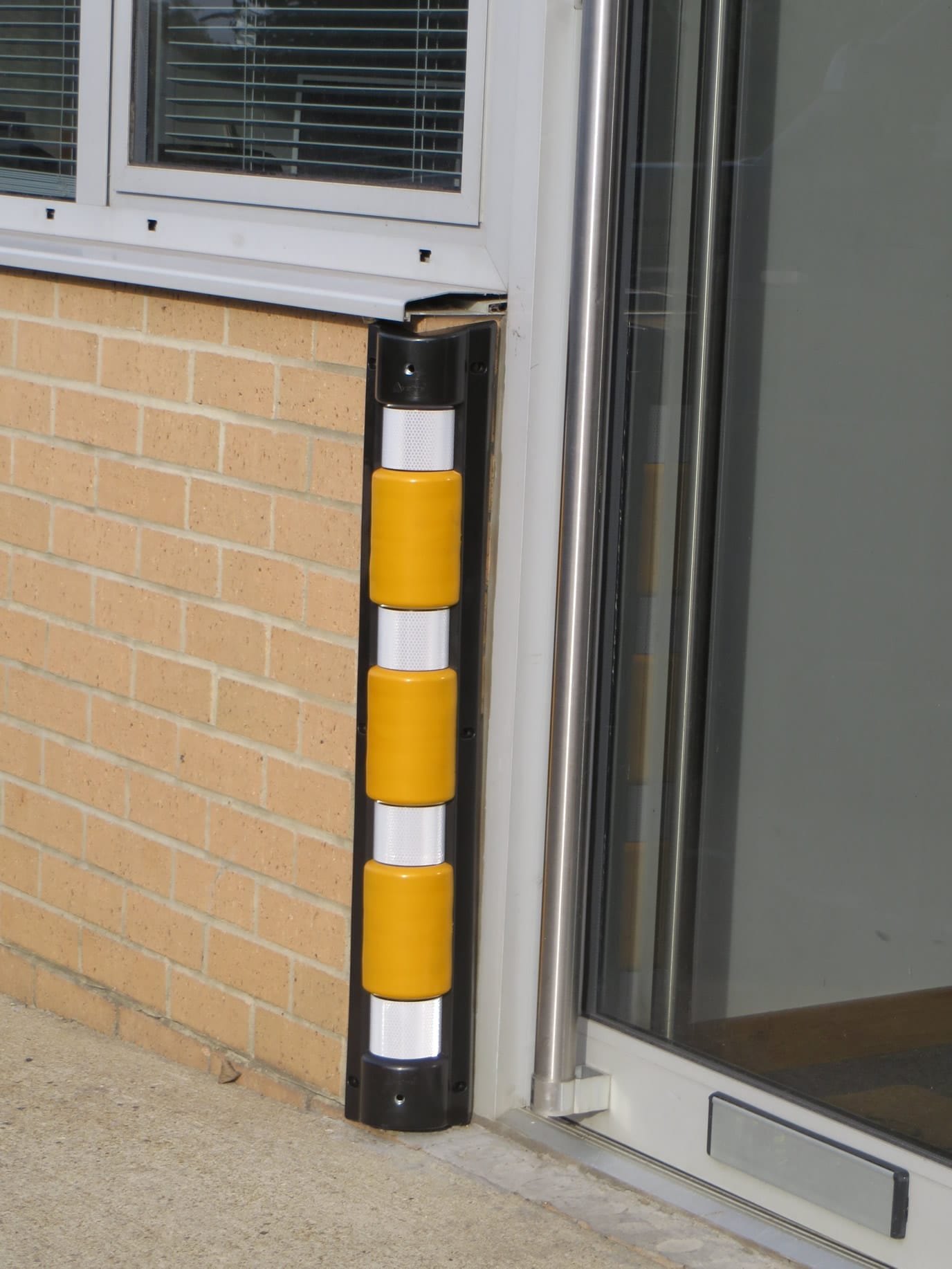

CornerWRAP, Heavy Duty, is specified where exposed corners face regular impact risk from vehicles, doors, bumpers or site equipment. Typical applications include basement car parks, multi-storey car parks, loading areas, warehouse door openings, concrete columns, service corridors, factory walls and commercial building corners.

It is especially useful where vehicle doors and bumpers often clash with columns. It also suits sites where visibility and impact cushioning both matter, such as car parks, service yards and shared pedestrian or vehicle areas.

Supporting compliance and duty of care

Under the Health and Safety at Work Act 1974, employers must ensure, so far as reasonably practicable, the health, safety and welfare of employees at work. The Workplace (Health, Safety and Welfare) Regulations 1992 also require workplace floors and traffic routes to be kept in suitable condition, and workplaces should be organised so pedestrians and vehicles can circulate safely.

CornerWRAP, Heavy Duty, provides a practical physical control measure for protecting vulnerable wall corners, concrete columns, door openings and surrounding building fabric from repeated contact. This is especially useful around car parks, loading areas, service corridors and door openings where people, vehicles or site equipment operate nearby. For H&S managers, facilities managers, site operators, contractors and maintenance teams, specifying heavy duty corner protection helps demonstrate a proactive approach to building protection and site safety. The result is more visible corners, reduced surface damage and safer movement around the site.
