CornerWRAP – Medium Duty

Product Details

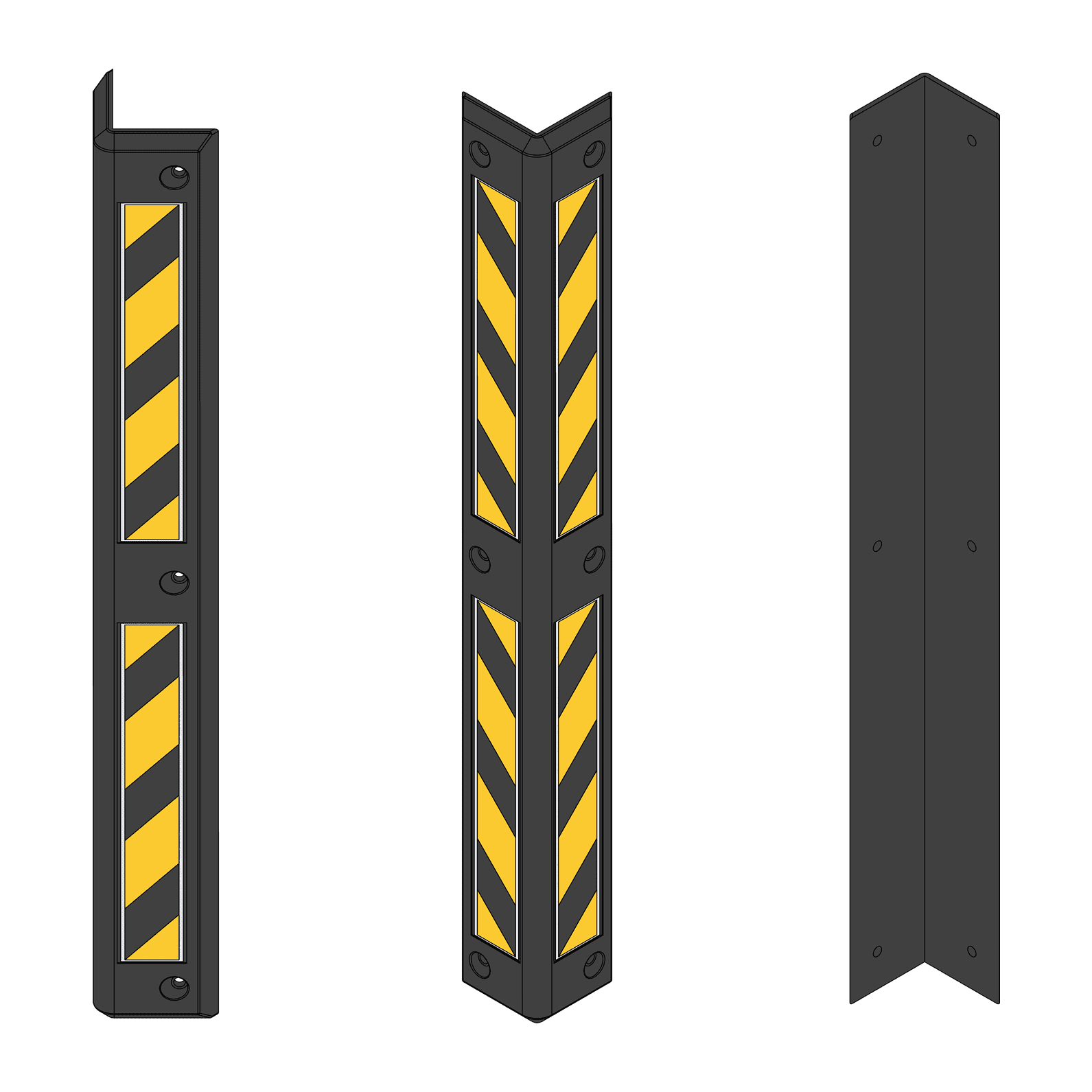

Medium duty corner protection for vulnerable wall edges

Exposed corners are often the first point of contact in busy commercial and industrial spaces. Door openings, building corners, wall edges and structural returns can all suffer repeated damage. This could be from trolleys, pallets, vehicles, cages and general site movement. Over time, this can lead to chipped brickwork, damaged blockwork, marked finishes and unnecessary repair costs.

CornerWRAP, Medium Duty, provides a simple physical protection measure for these vulnerable areas. The semi-flexible moulded construction helps absorb and deflect minor impacts around exposed corners. This helps protect the building fabric while making the corner more visible to people moving through the area.

Semi-flexible polyvinyl construction

Corner protection needs to be visible, practical and suitable for different wall types. CornerWRAP, Medium Duty, is manufactured from a semi-flexible polyvinyl polymer formula, giving it enough flexibility for medium duty impact protection while maintaining a defined corner profile.

The product is suitable for steel, brick, block and precast concrete walls. This makes it useful across warehouses, commercial buildings, back-of-house areas, service corridors, door openings and operational sites where exposed corners are vulnerable to repeated contact.

High-visibility finish with chevron reflectors

Corners in busy sites need to stand out clearly. The black and yellow finish gives CornerWRAP a strong high-visibility appearance, helping people identify the protected edge before contact occurs. This is especially useful in areas where walls, door openings and structural corners sit close to movement routes.

Each CornerWRAP, Medium Duty, protector includes 4x chevron reflective strips. These improve visibility in low-light areas and at night, which helps support safer movement around exposed building corners. As a result, the product protects the corner and makes the hazard easier to see.

780mm medium duty profile

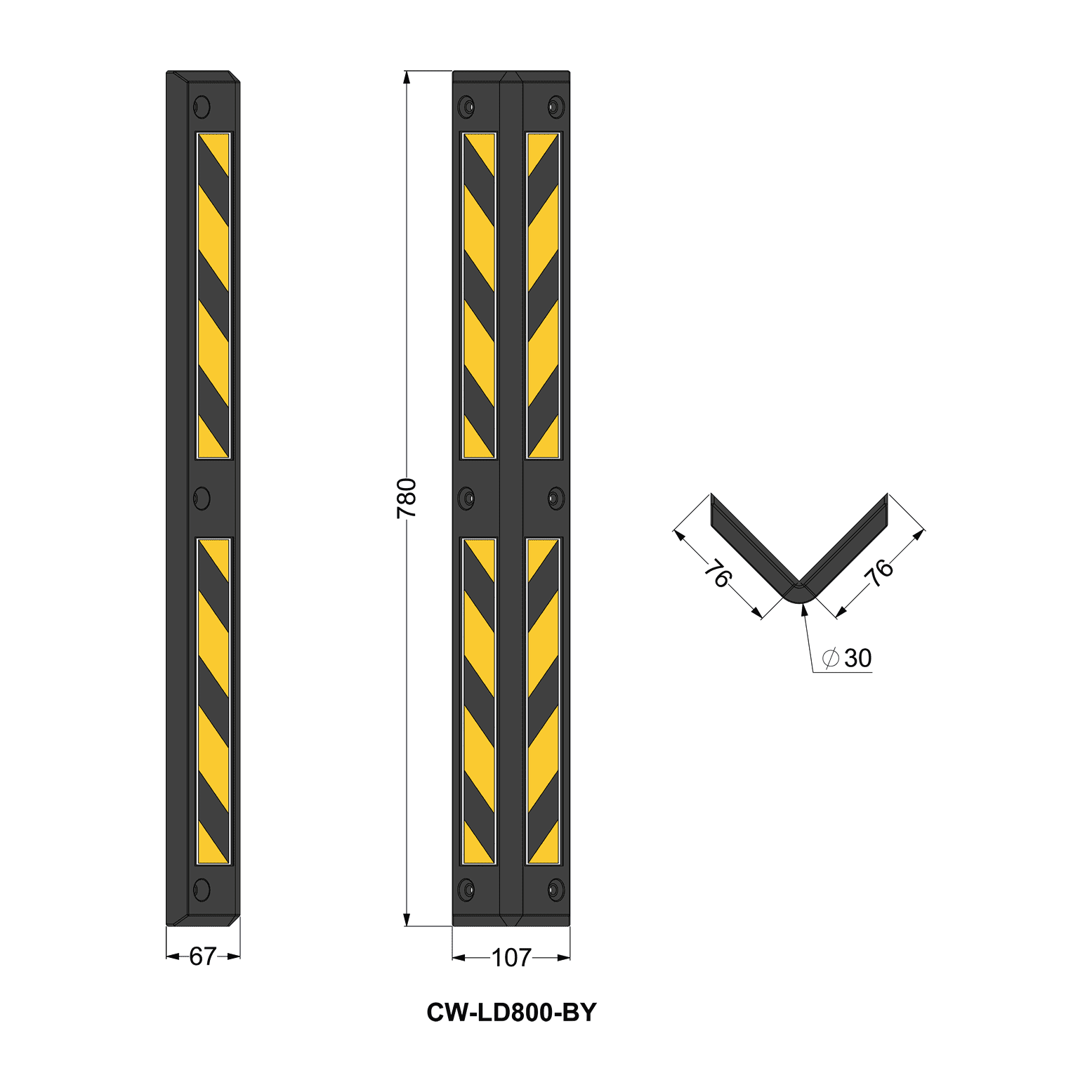

CornerWRAP, Medium Duty, is 780mm long and designed for medium protection requirements. The 76mm x 76mm flange profile wraps around the corner, creating visible protection on both exposed faces.

The protector includes 6x fixing holes and uses 6x No.12 fixings for installation to suitable brick, block or precast concrete surfaces. This gives installation teams a clear fixing arrangement for standard corner protection applications.

Where CornerWRAP, Medium Duty, is specified

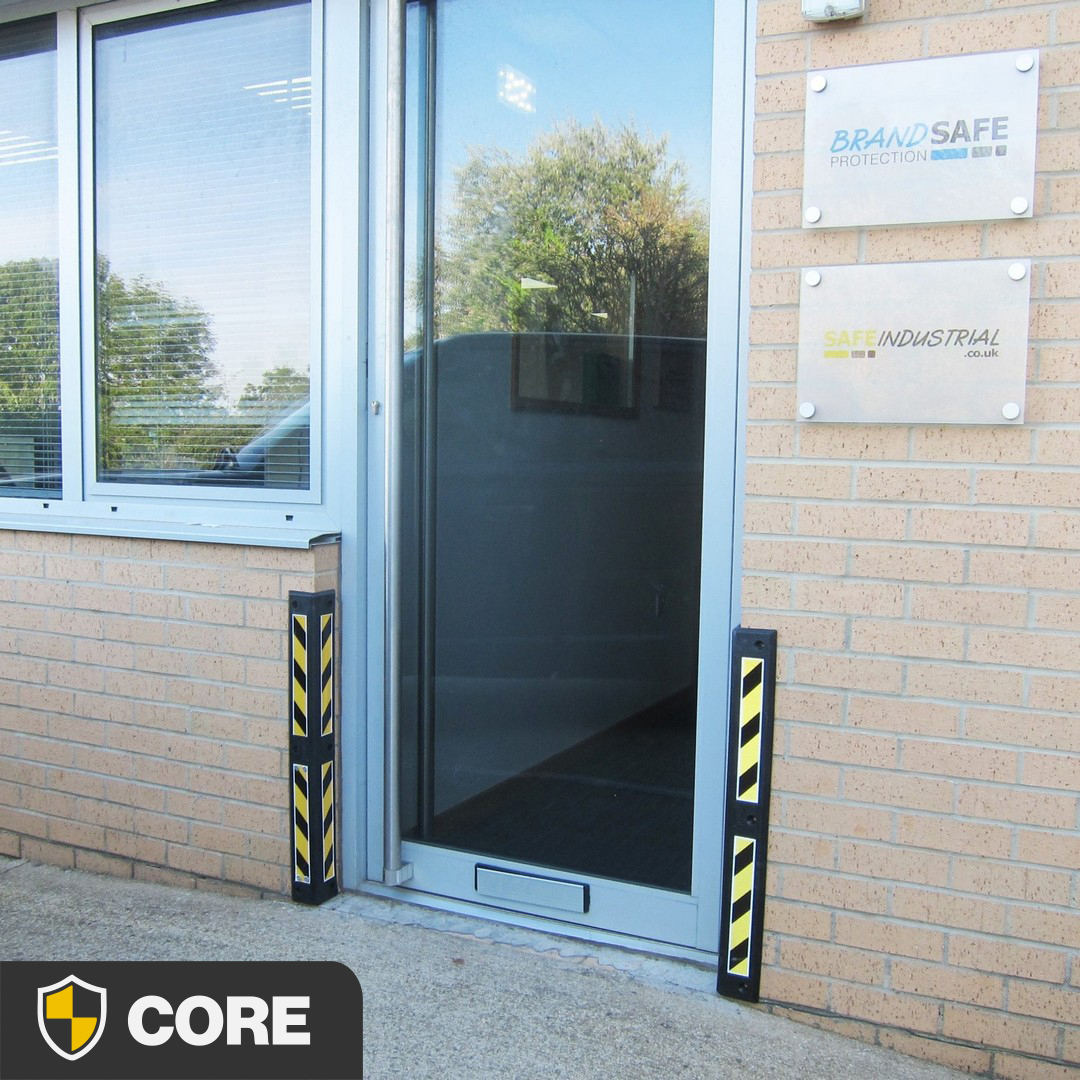

CornerWRAP, Medium Duty, is specified where exposed building corners need clear visual marking and medium duty protection. Typical applications include warehouse door openings, service corridors, loading areas, commercial back-of-house spaces, car park pedestrian routes, factory walls, stockroom entrances and industrial building corners.

It is especially useful where repeated light contact has started to mark or damage corners. It also suits areas where visibility is as important as impact protection, such as shared pedestrian and operational routes.

Supporting compliance and duty of care

Under the Health and Safety at Work Act 1974, employers must ensure, so far as reasonably practicable, the health, safety and welfare of employees at work. The Workplace (Health, Safety and Welfare) Regulations 1992 also require workplace floors and traffic routes to be kept in suitable condition, and workplaces should be organised so pedestrians and vehicles can circulate safely.

CornerWRAP, Medium Duty, provides a practical physical control measure for protecting vulnerable wall corners, door openings and surrounding building fabric from repeated contact. This is especially useful around workplace routes, service corridors, loading areas and door openings where people, trolleys or site vehicles operate nearby. For H&S managers, facilities managers, site operators, contractors and maintenance teams, specifying corner protection helps demonstrate a proactive approach to building protection and site safety. The result is more visible corners, reduced surface damage and safer movement around the site.
