Armco Wall Mounted Safety Barrier

Product Details

Wall-mounted impact protection where floor space is limited

In many industrial and commercial environments, protecting building walls from vehicle impacts is essential. Floor-mounted barriers are not always practical. Restricted clearances, loading corridors and tight operational spaces all present locations where a floor-standing system would obstruct movement. The Armco Wall Mounted Safety Barrier provides the same fundamental protection without any floor footprint. That is what makes it different.

At just 165mm overall depth from the wall face, the barrier sits close to the surface it protects. It absorbs and cushions low-level impacts from forklifts, pallet trucks and trolleys before they reach the wall structure behind it. That compact profile is the practical choice for space-restricted environments where wall protection is needed but floor clearance cannot be compromised.

Steel and rubber construction with built-in shock absorption

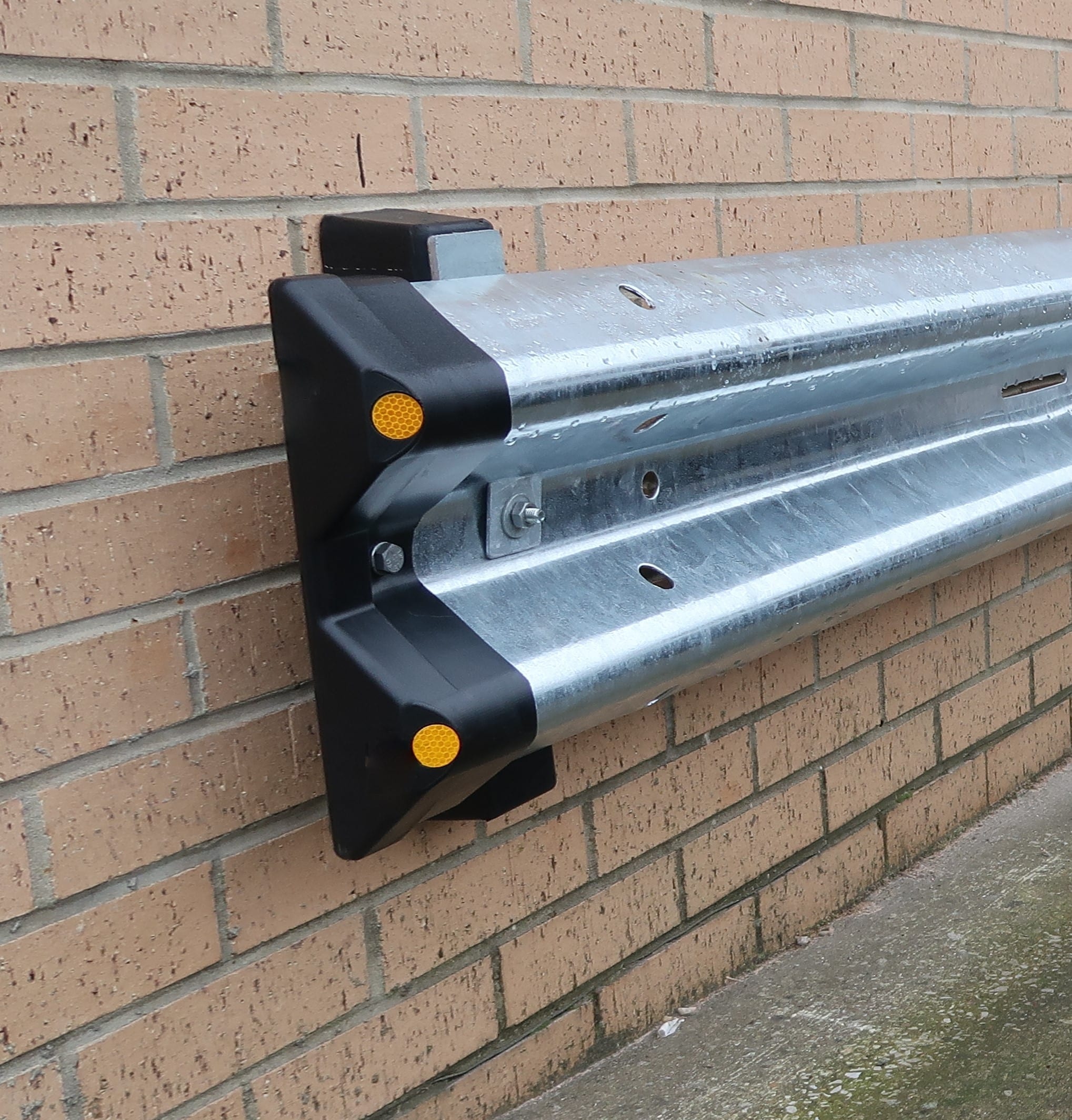

The barrier uses a hot dip galvanised mild steel plate combined with a black rubber buffer. The steel plate provides the structural backbone. The rubber buffer provides the shock absorption. It cushions impact force before it transfers into the wall fixings and the building structure behind them. This built-in design reduces damage to both the barrier and the wall under repeated low-level contact.

The galvanised steel and rubber combination provides long-term corrosion resistance and durability. The system suits busy warehouses, service corridors, loading bay walls, car parks and perimeter routes. Repeated low-level vehicle contact is a daily reality in all of these environments.

Installation and fixing

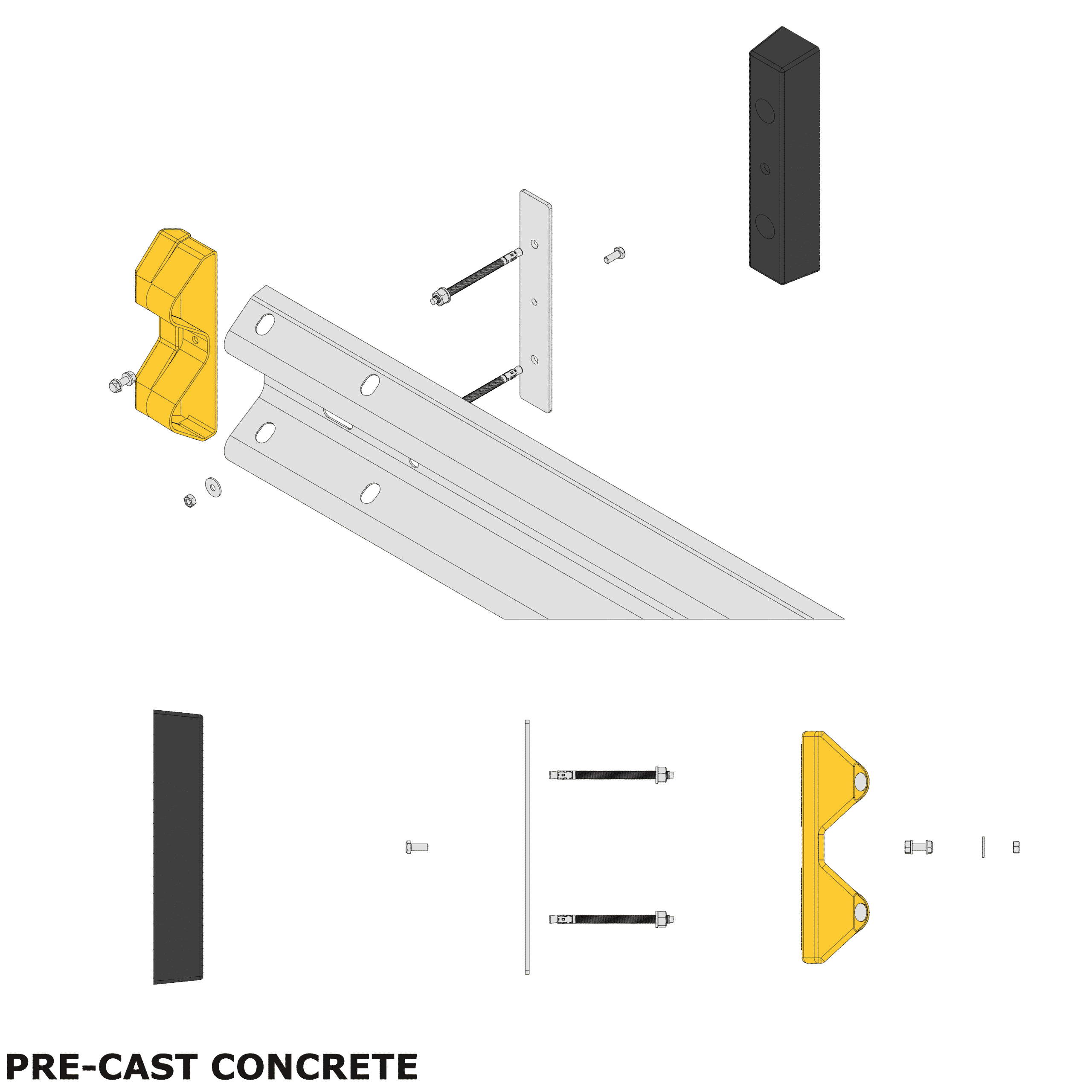

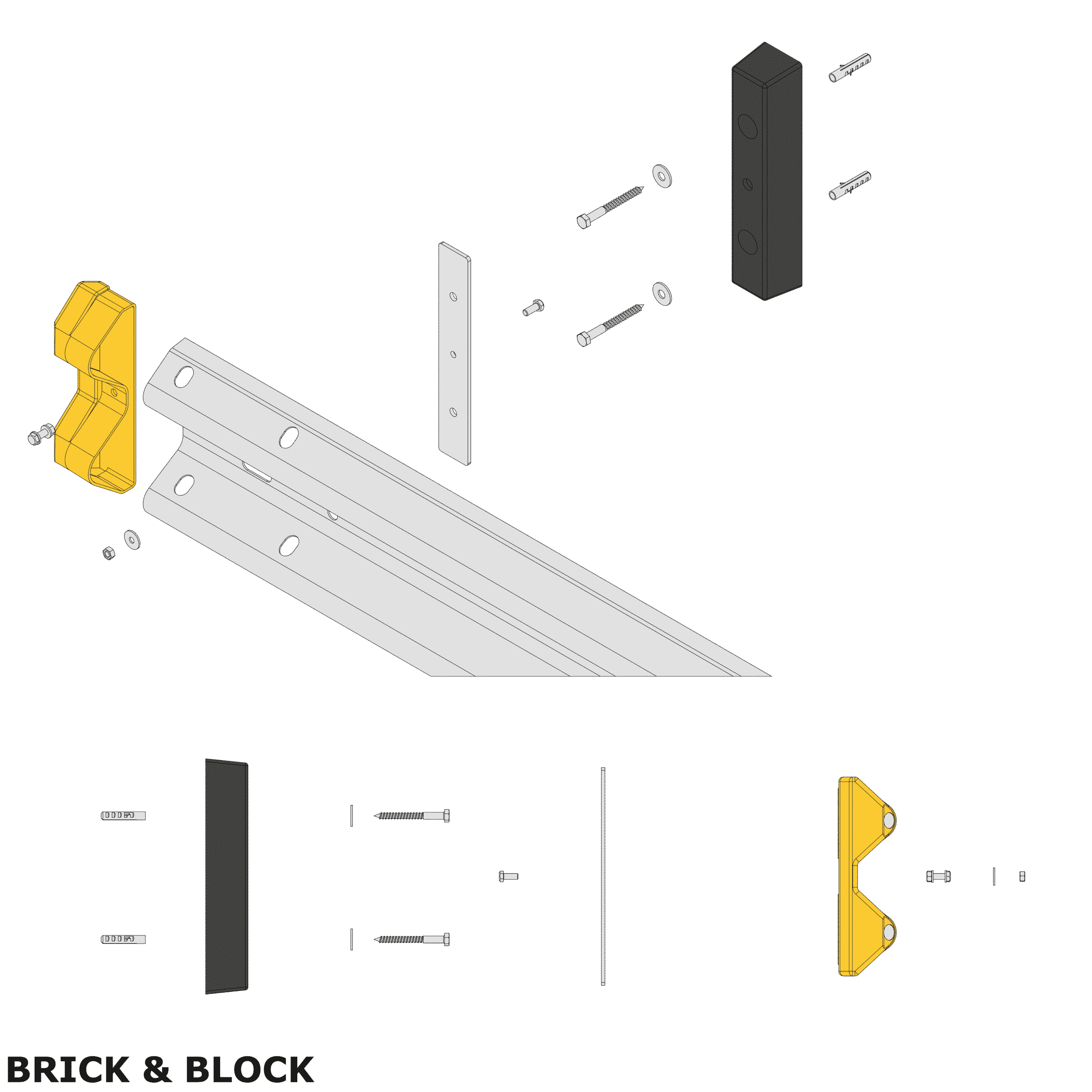

The barrier fixes directly to brick, block or pre-cast concrete walls. Two M12 x 160mm coach screws and two 75mm nylon rawl plugs secure each fixing point. Installation requires a 14mm diameter drill hole to a depth of 100mm. All fixings are supplied.

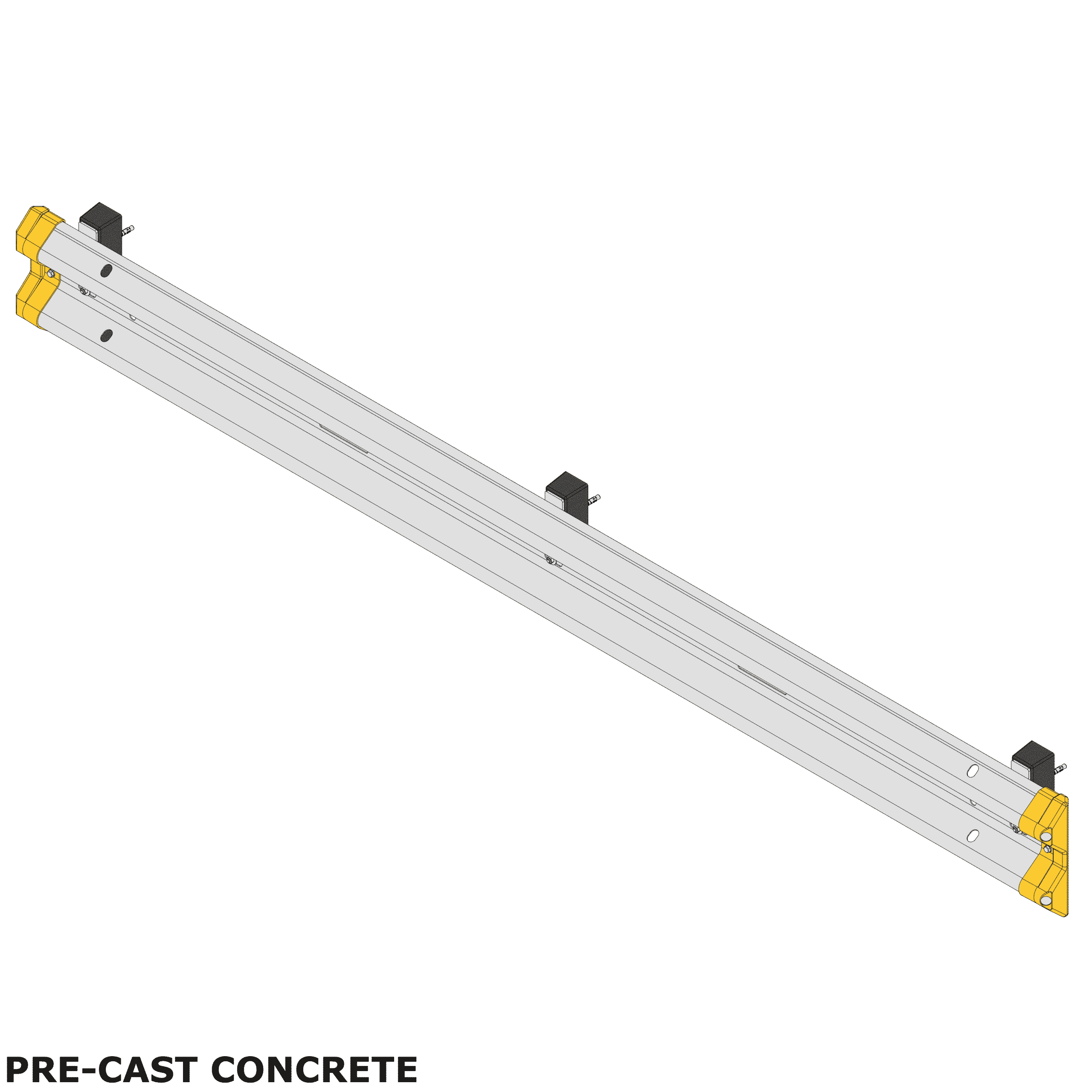

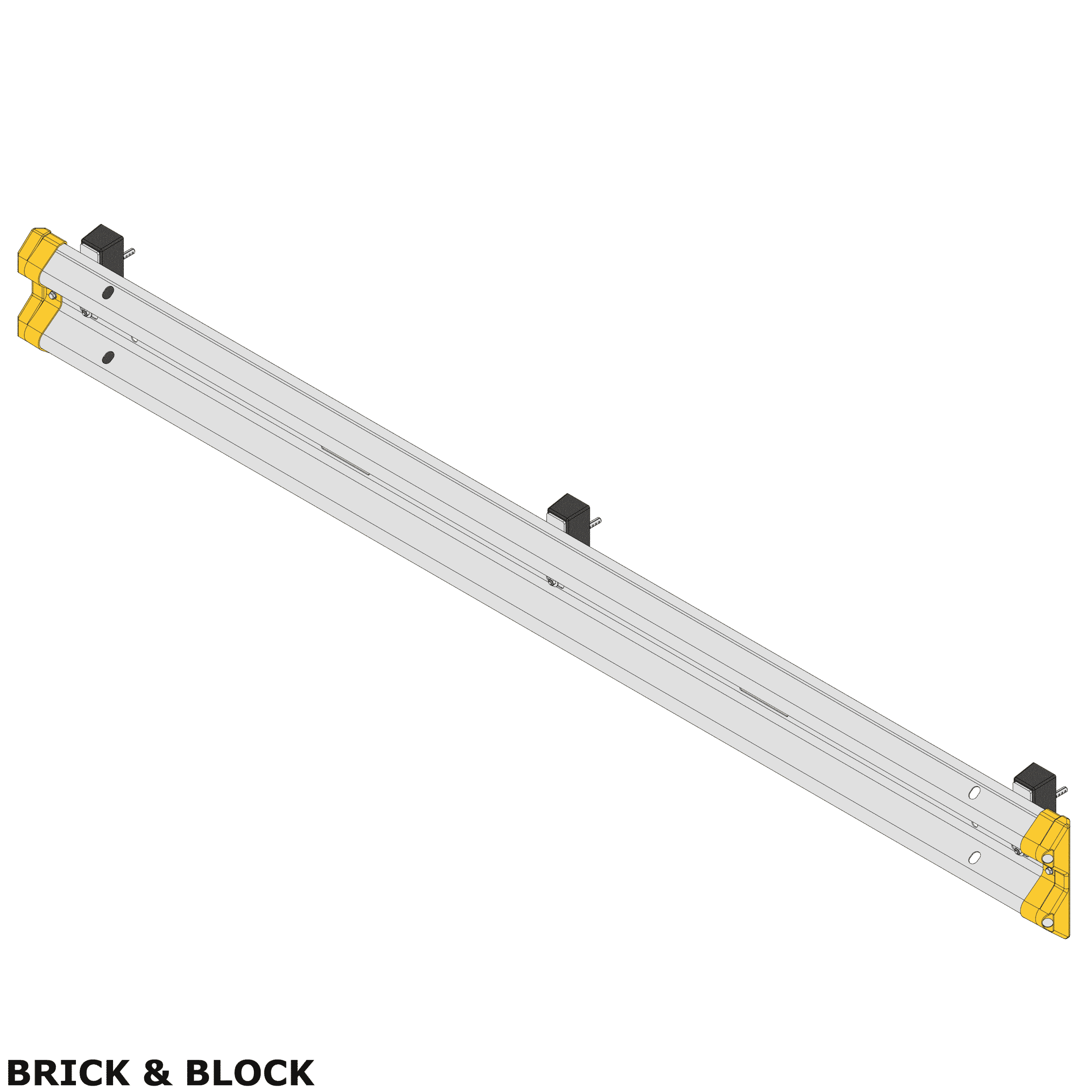

For high-risk areas with frequent vehicle contact, 1.6m fixing centres maximise rigidity and resistance along the full length of the installation. For lower-risk areas, 3.2m fixing centres provide effective protection at a lower cost. Both configurations use the same fixings and components. That consistency keeps specification and installation straightforward.

Compatible with the full range of Brandsafe Armco accessories, the system specifies with polymer safety ends in yellow or black. These provide a clean, safe finish at the ends of each barrier run and improve visibility for vehicle operators.

Where the Armco Wall Mounted Safety Barrier is specified

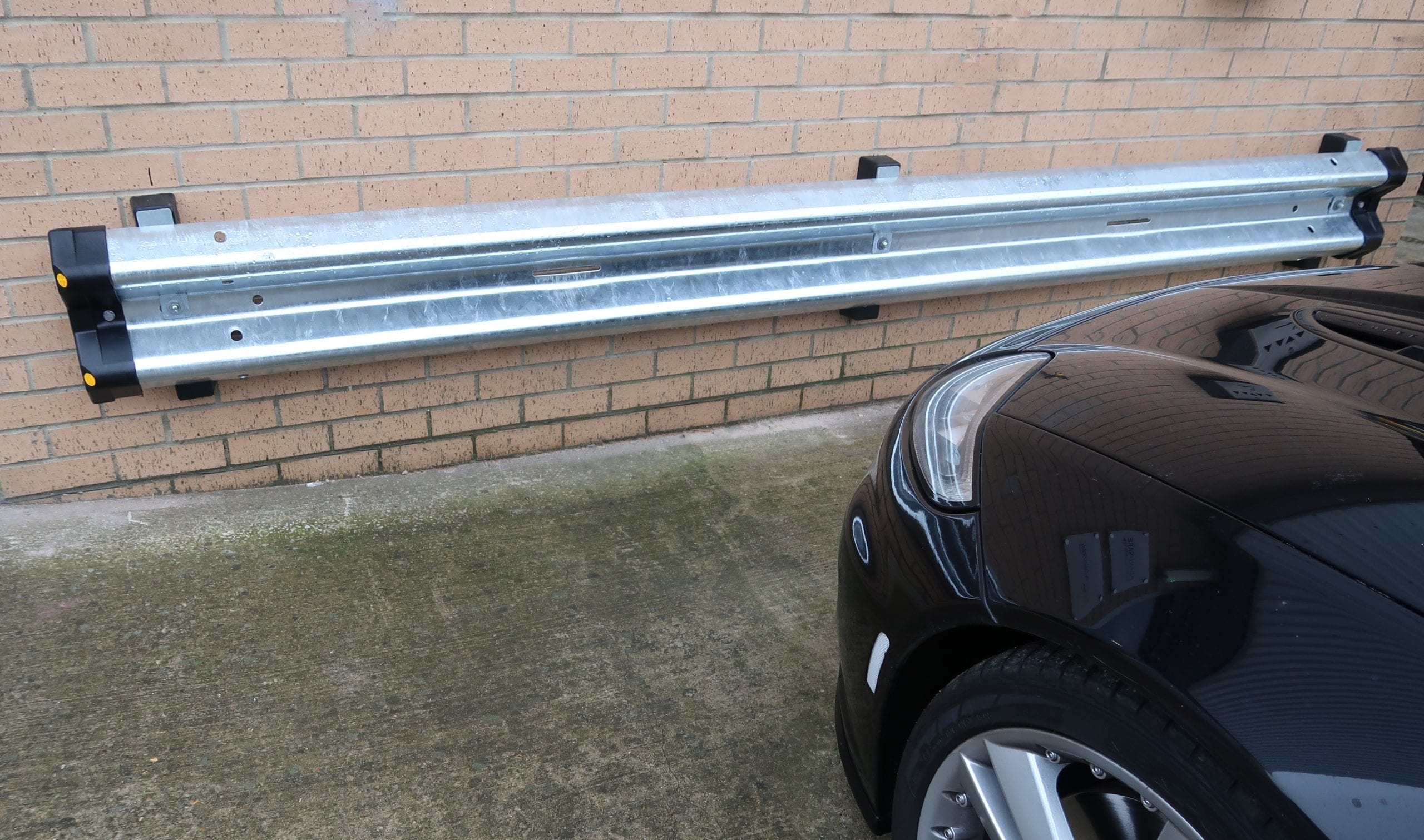

The barrier suits any location where wall protection is required and floor space prevents the use of a floor-mounted system. Typical applications include loading bay walls and service corridors, vehicle access zones with restricted clearance, car parks and back-of-house logistics routes, equipment rooms and racking aisles, and plant protection areas where a floor-standing barrier would obstruct operational access.

Its low-profile design makes it particularly well suited to tight operational spaces. Where every centimetre of clearance matters, this barrier delivers protection without compromise.

Supporting compliance and duty of care

Under the Workplace (Health, Safety and Welfare) Regulations 1992 and the Health and Safety at Work Act 1974, employers must maintain building fabric in a safe condition. They must also take reasonable steps to prevent foreseeable damage to assets and people from vehicle contact. In areas where floor-mounted barriers are not practical, a wall-mounted system provides the same documented physical control measure. It does this without the floor footprint.

The Armco Wall Mounted Safety Barrier provides a cost-effective solution at exactly these locations. For facilities managers, H&S managers, specifiers and contractors, installing wall-mounted protection in space-restricted, high-traffic areas demonstrates a proactive approach to infrastructure protection. The result is less structural damage, lower repair costs and a safer, better organised site.
