3-Rail Pedestrian Barrier

Product Details

Pedestrian route definition where guidance is the priority

Pedestrian walkways need a clear physical prompt that channels people safely and keeps MHE traffic apart from pedestrian routes. The 3-Rail Pedestrian Barrier provides exactly that. It defines walkways, highlights safe pedestrian areas and guides people in the right direction. It works across warehouse and industrial environments, internally or externally.

At 1150mm high with three rails across the full height of the post, it delivers a clear and visible physical boundary. Busy operational environments need exactly this level of detectable definition. Its HDPE construction is low maintenance, fully recyclable and non-toxic throughout its service life.

HDPE construction for low maintenance performance

The barrier uses high-density polyethylene throughout. HDPE offers durability, colour retention and resistance to moisture, mould and most solvents. It needs no repainting. It only needs replacing when frequent, major impacts have occurred. Unlike metal alternatives, minimal force transfers into the floor on impact. This keeps floor damage and long-term maintenance costs low. Low maintenance is built into the design.

The material is non-toxic and fully recyclable. It performs across ambient, chilled and freezer environments. This makes it suitable for food production facilities where hygiene and material safety are additional requirements alongside route definition.

Colour options and visibility

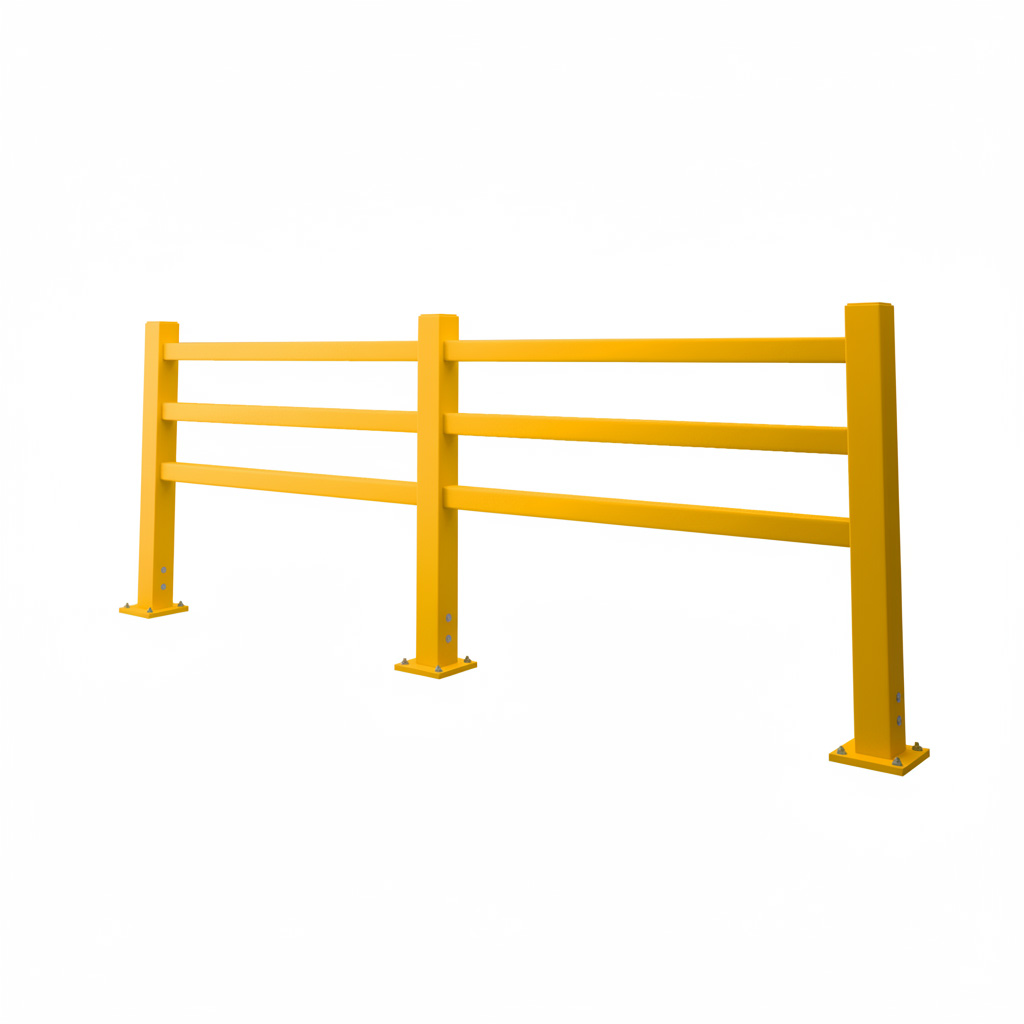

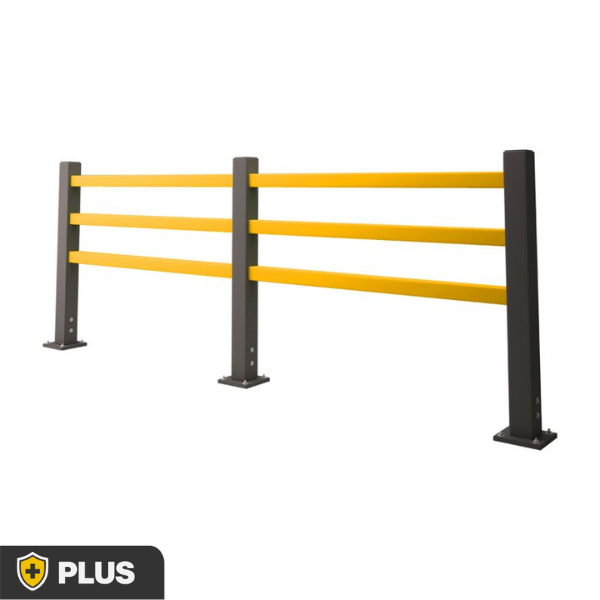

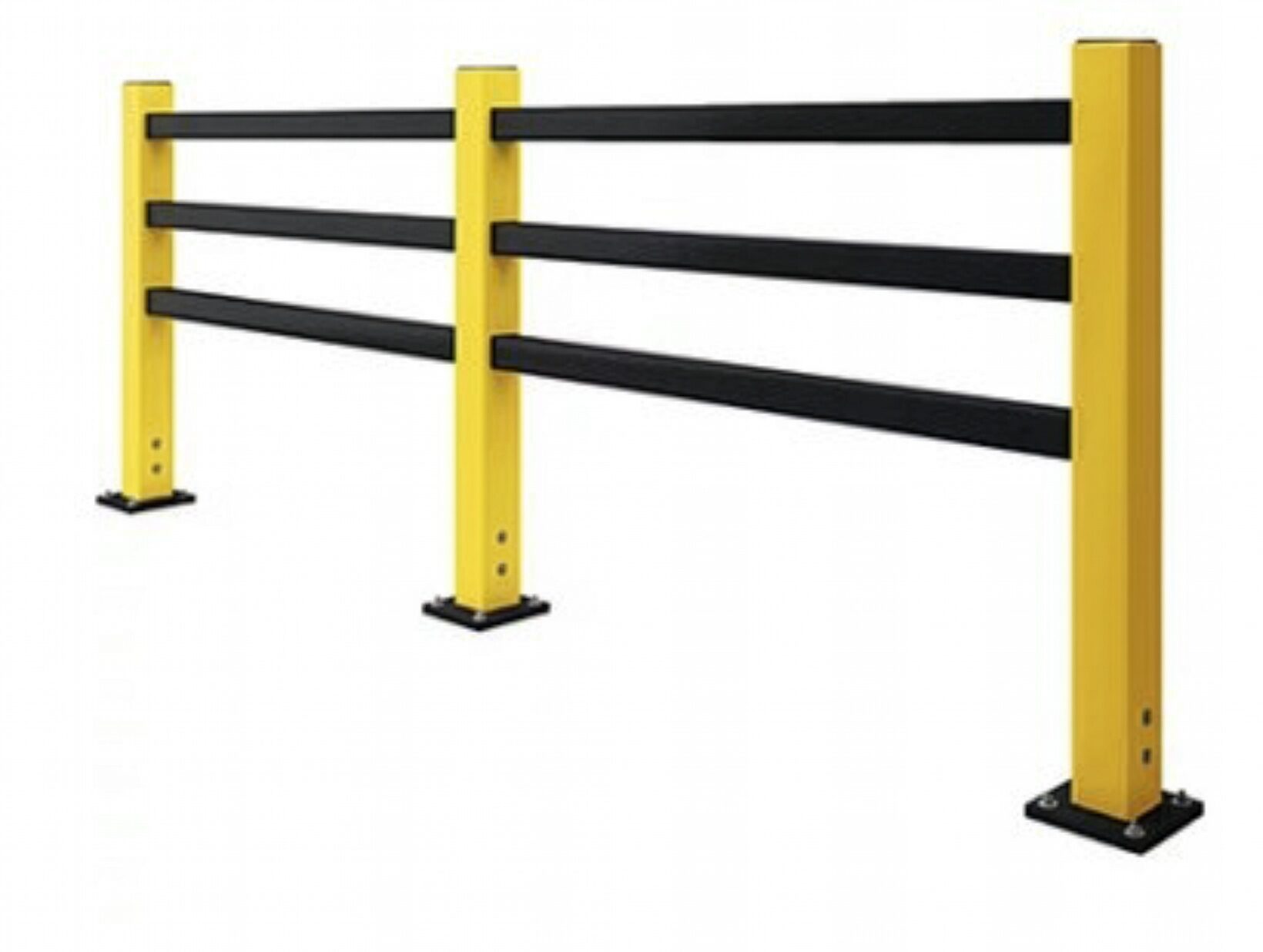

The 3-Rail Pedestrian Barrier is available in three standard colour combinations. Safety Yellow posts with black rails provide high contrast visibility in busy operational environments. Safety Yellow and Grey is the standard option across the Brandsafe range. All Safety Yellow suits locations where a single colour scheme is preferred. Each option delivers clear, consistent visibility without ongoing maintenance.

Custom colour options are available on request, subject to minimum order quantities. UV stabilised HDPE means the finish does not fade or require repainting over the lifetime of the barrier.

Sizing, cutting and installation

The barrier stands at 1150mm high with a 300mm footplate width. Standard lengths start from 1400mm and adjust to suit the specific layout of the site. Rail sets cut to length on site using a standard chop-saw. This allows the system to fit any layout without specialist fabrication equipment. All fixings are supplied. Installation is straightforward and keeps operational downtime to a minimum.

Where the 3-Rail Pedestrian Barrier is specified

The barrier suits warehouse walkways, picking aisles, packing stations, perimeter routes, car parks and any internal or external location where clear pedestrian route definition is required. It is particularly well suited to locations where a clearly defined physical boundary improves safety and organisation. A full impact rated system is not always needed. This barrier provides the definition and visibility the site requires without it.

For locations where vehicle contact is a known risk, bumper barriers add impact rated protection at the same location. The 3-Rail Pedestrian Barrier and bumper barrier systems are compatible and specify together to provide both route definition and impact protection where both are required.

Supporting compliance and duty of care

Under the Workplace (Health, Safety and Welfare) Regulations 1992 and the Health and Safety at Work Act 1974, employers must keep pedestrian routes clearly defined and safe. In many locations, clear route definition through a visible physical barrier meets this requirement. It also demonstrates a proactive approach to pedestrian safety. This barrier supports both obligations directly.

The 3-Rail Pedestrian Barrier provides a practical, cost-effective physical boundary for pedestrian route definition across a wide range of internal and external environments. For facilities managers and H&S managers, installing clearly visible pedestrian barriers across site routes demonstrates a proactive approach to pedestrian safety. It also supports the requirement to manage foreseeable risks to a practicable minimum. The result is clearer routes, fewer near misses and a safer, better organised site.
