SpaceSaver Double Bumper Pedestrian Barrier

Product Details

Pedestrian segregation where space is at a premium

In busy warehouse environments, clearly defining pedestrian routes and separating foot traffic from MHE is one of the most important safety measures a site can implement. Not every location requires a full heavy-duty barrier system. The SpaceSaver Double Bumper Pedestrian Barrier provides reliable, visible pedestrian segregation in areas where space is limited and a compact solution is the practical choice.

At 1170mm high, it sits at a height that provides meaningful pedestrian protection and clear route demarcation. The dual rail configuration delivers greater strength than a single rail system. This makes it well suited to walkways, picking aisles, packing stations and perimeter routes where regular movement of pallets, trolleys and smaller MHE creates a consistent low-level impact risk. The result is a barrier that works harder in less space.

A lighter specification for lower-risk locations

The SpaceSaver Bumper Barrier uses a reduced tube diameter compared to the Brandsafe PAS 13 tested barrier systems. This produces a lighter, more compact design suited to applications where a full-specification tested system is not required. It provides dependable segregation and visibility without the footprint or cost of a heavy-duty alternative. That makes it the practical choice for lower-risk internal locations.

For locations requiring independently tested impact performance, the Brandsafe PAS 13 tested Polymer Barrier range provides the higher specification alternative.

HDPE and mild steel construction

The barrier uses flexible HDPE rails combined with mild steel uprights. The HDPE rails deflect on impact and absorb force before it transfers into the floor, reducing floor damage and the maintenance costs that follow. The mild steel uprights provide the structural support the system needs to perform reliably under repeated contact. Both materials work together to deliver a barrier that handles everyday operational demands without requiring frequent replacement or maintenance.

Both materials are non-toxic and fully recyclable. The barrier performs across ambient, chilled and freezer environments and suits food production facilities where hygiene and material safety are additional requirements alongside physical protection.

Visibility, sizing and installation

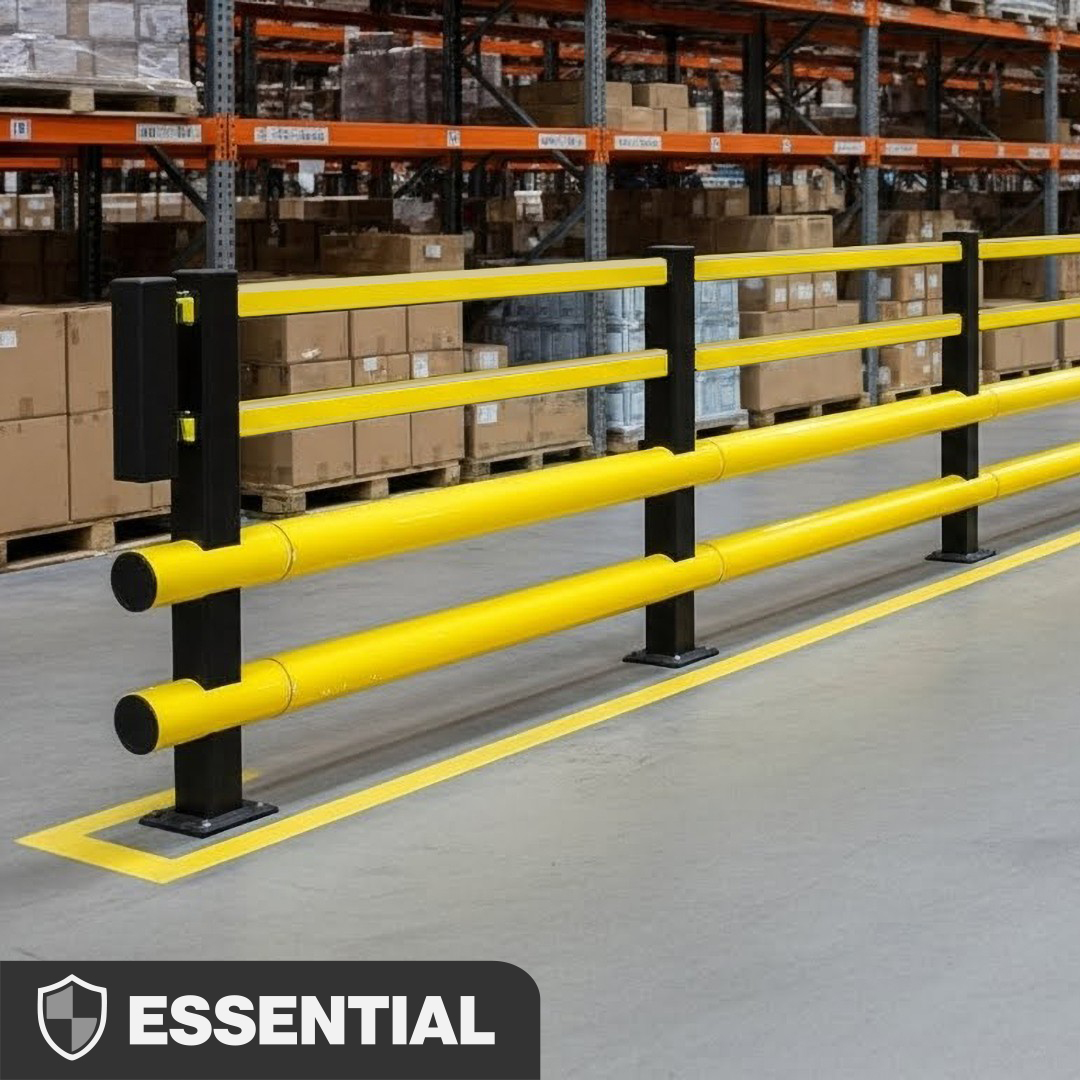

The SpaceSaver Double Bumper Pedestrian Barrier is supplied in Safety Yellow and Grey as standard. This provides a clear visual boundary for MHE drivers and warehouse teams along pedestrian routes. Bespoke colours are available on request, subject to minimum order quantities.

The barrier stands at 1170mm high with a 200mm x 200mm baseplate. Standard lengths start from 1400mm and are variable to suit the specific layout of the site. Each post uses four Ø14mm fixing holes and fixes using M12 x 100mm throughbolts. Floor preparation requires a Ø12mm drill hole with a minimum embedment of 60mm. All fixings are supplied. For barrier runs of 3 metres or more, a centre post is incorporated as standard to maintain structural integrity across the full length.

Where the SpaceSaver Double Bumper Pedestrian Barrier is specified

The barrier suits warehouse walkways, picking aisles, packing stations, mezzanine edges and perimeter routes where pedestrians and MHE share operational space. Its slim footprint means it installs in tight areas without obstructing movement or reducing available working space.

It works effectively as a standalone barrier section or as part of a wider pedestrian safety system across the site. A single rail version is also available where a lighter specification suits the location. For higher risk zones, it pairs with complementary Brandsafe protection products to create a layered approach to pedestrian safety.

Supporting compliance and duty of care

Under the Workplace (Health, Safety and Welfare) Regulations 1992 and the Health and Safety at Work Act 1974, employers are required to maintain safe working environments and take reasonable steps to protect people from foreseeable risks, including the risk of collision between pedestrians and MHE. Clearly defined and physically protected pedestrian routes are one of the most effective control measures available.

The SpaceSaver Double Bumper Pedestrian Barrier provides a practical, cost-effective physical boundary at the point where pedestrian and vehicle routes meet. For facilities managers and H&S managers, installing pedestrian barrier protection across warehouse routes demonstrates a proactive approach to workplace transport safety and supports the requirement to manage foreseeable risks to a practicable minimum. The result is clearer routes, fewer near misses and a safer working environment for everyone on site.
