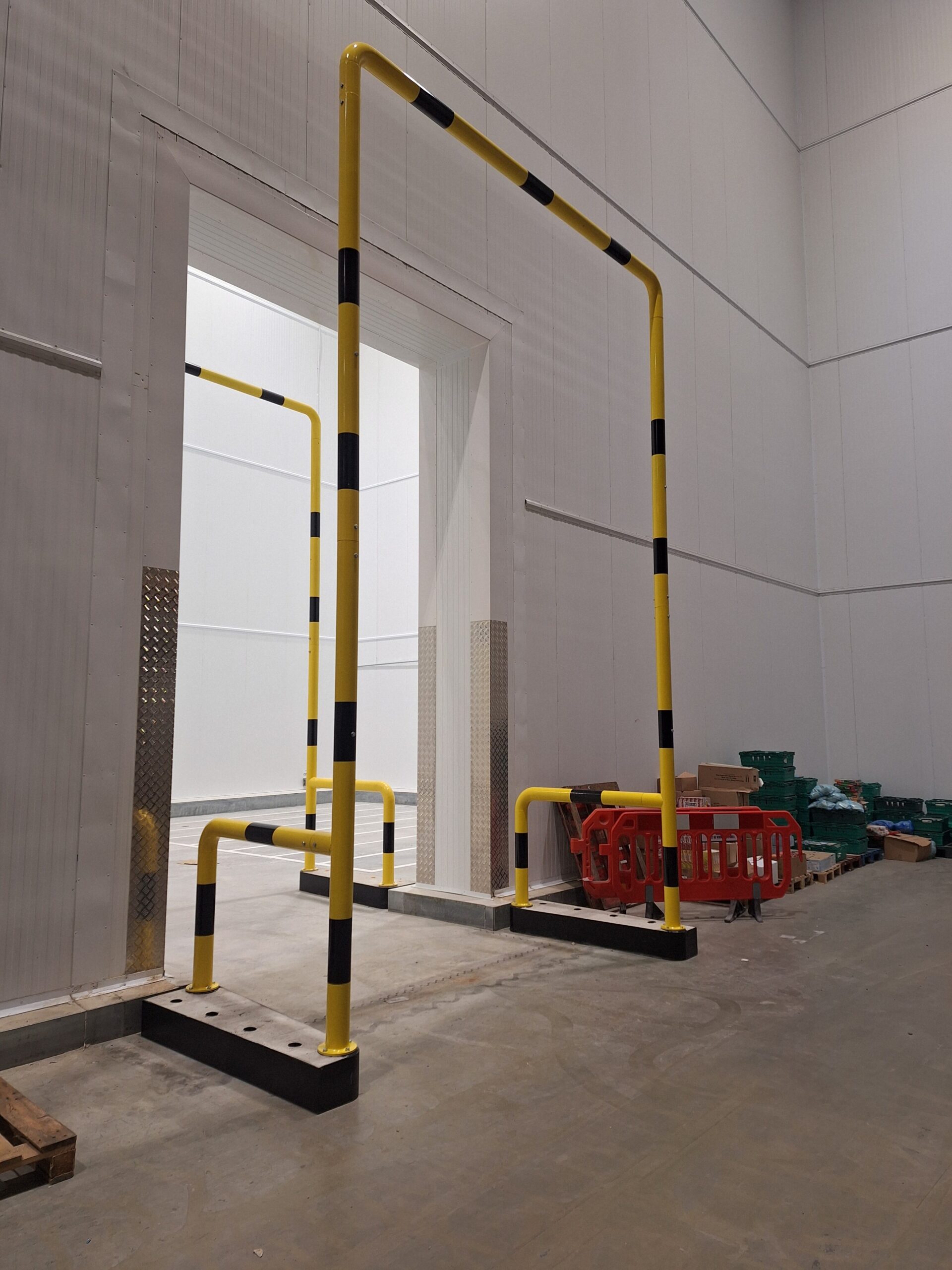

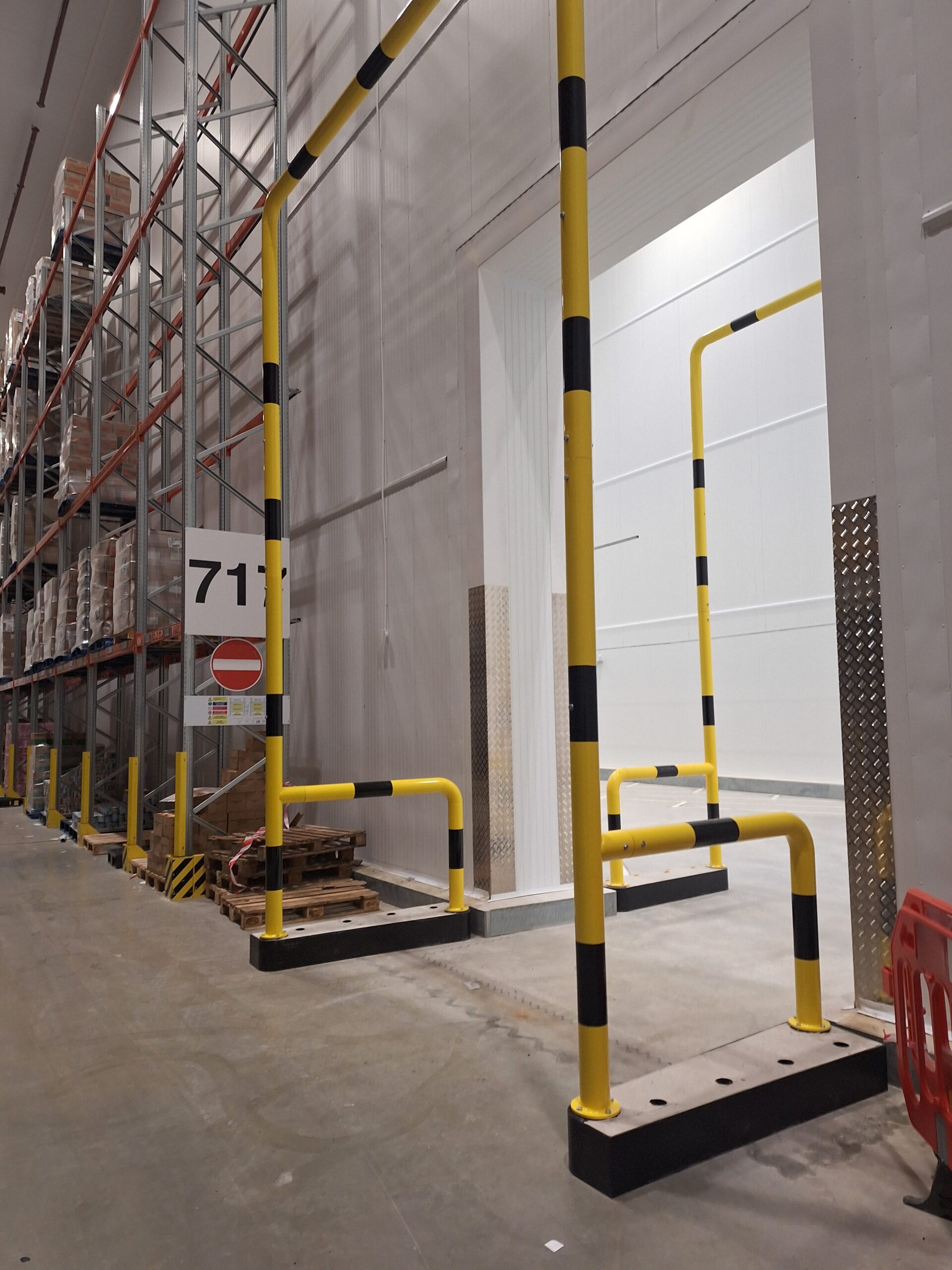

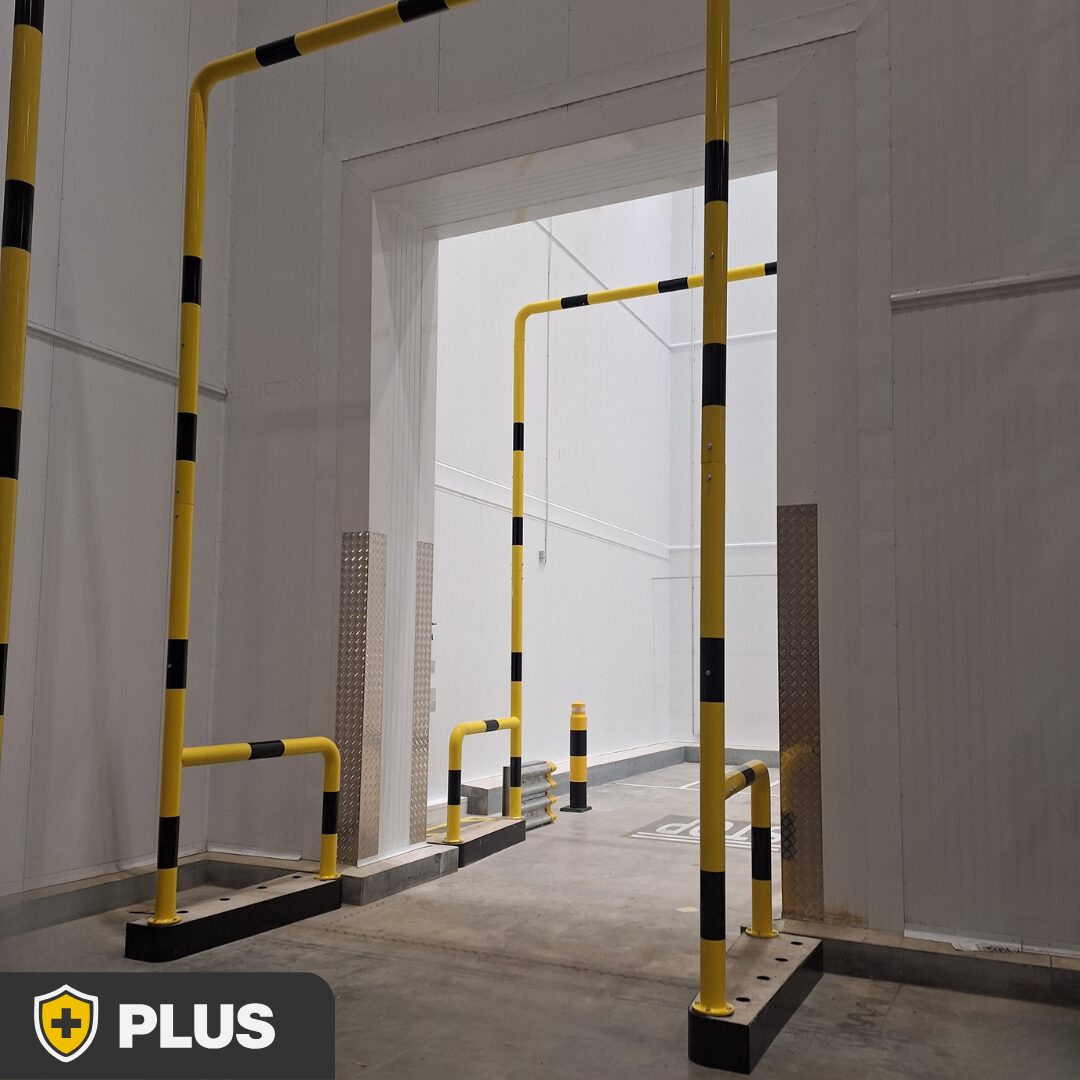

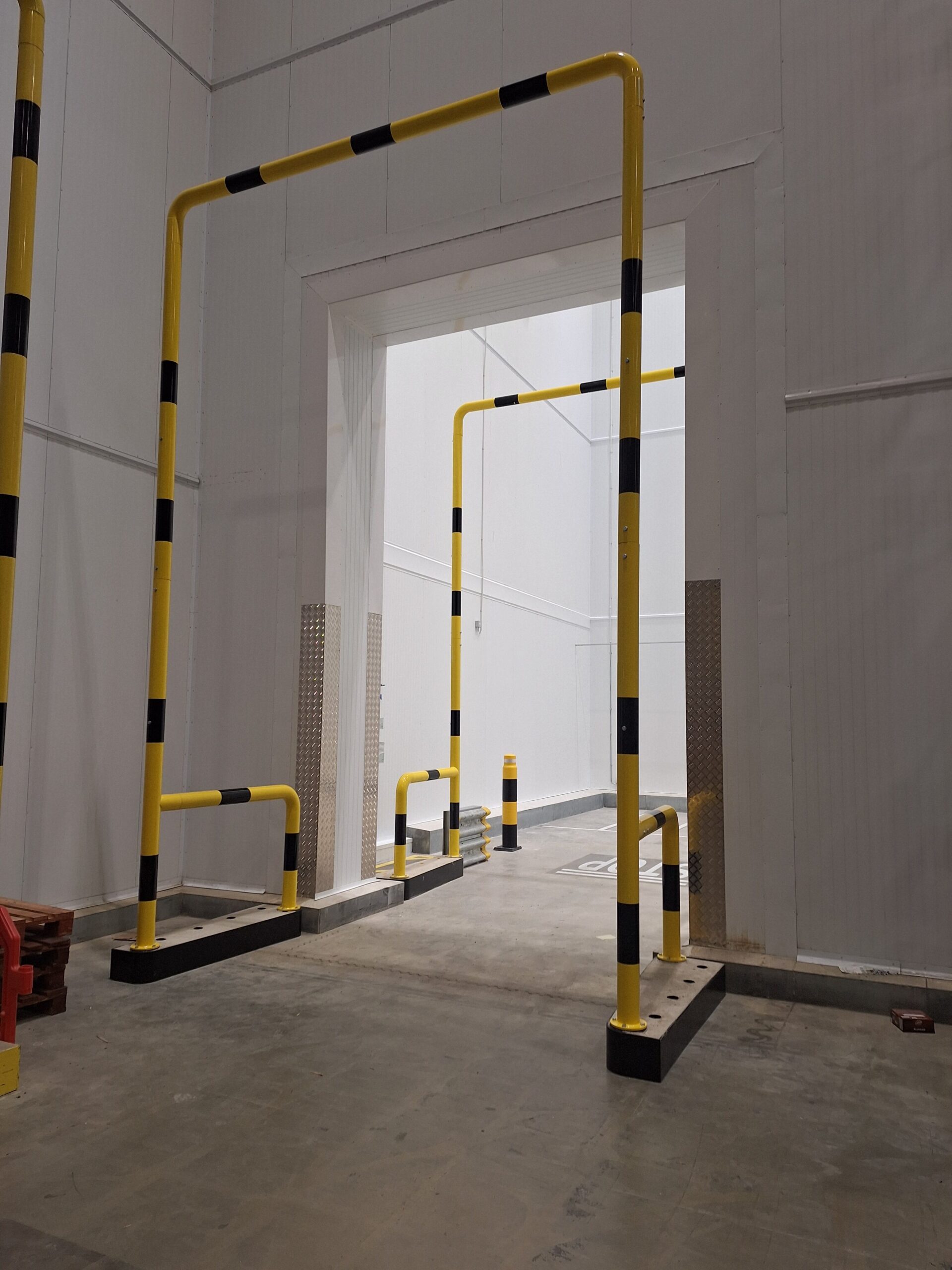

Giraffe Goalpost System

Product Details

Doorway protection for high-risk MHE routes

Doorways, loading areas, rapid-rise doors and racking lane entrances are some of the most vulnerable points in a busy warehouse. Forklifts and MHE often pass through these openings repeatedly, sometimes with limited clearance, restricted visibility or time pressure. Over time, vehicle strikes can damage door frames, overhead services, building fabric and structural openings. This is where the Giraffe Goalpost System fits, helping protect building fabric, door frames and infrastructure at high-risk access points.

Giraffe Goalpost provides a high-visibility physical protection system for these critical access points. The goalpost layout helps define the safe working boundary around the opening, guiding MHE drivers through the correct clearance zone. This helps reduce the risk of vehicle impact while keeping access routes open and operational.

Heavy-duty mild steel construction

High-traffic access points need protection that can withstand demanding site conditions. Giraffe Goalpost is manufactured from mild steel and designed as a fully welded steel structure. This gives the system the strength required for doorway, loading bay and racking lane entrance protection.

The system includes concrete-filled bases for added stability and impact resistance. L-shaped brace supports reinforce the uprights, helping the structure manage contact forces at vulnerable access points. This makes the system suitable for sites where door protection needs to be highly visible, stable and built around the way vehicles actually move.

Bespoke sizes up to 8000mm

Every doorway and access point is different. Some sites need to protect rapid-rise doors, while others need clearance around blast freezers, loading areas, racking lanes or wide structural openings. Because of this, Giraffe Goalpost is custom manufactured to suit site-specific heights and widths.

The system can be manufactured up to 8000mm high and 8000mm wide, depending on the site requirement. This gives facilities teams, contractors and specifiers a flexible protection option for both standard and oversized openings. It also helps avoid forcing a fixed-size product into a non-standard environment.

For bespoke requirements, dimensions, finishes or fixing details, contact our team for tailored advice.

High-visibility boundaries for MHE drivers

Clear visual boundaries help drivers understand where the safe clearance zone begins. Giraffe Goalpost is powder-coated in RAL 1023 Yellow with black vinyl strips as standard, creating a visible frame around doorways and structural openings. This supports safer movement in areas where forklifts, pallet trucks and other MHE operate close to building fabric.

The black vinyl strips help maintain clear visual contrast across the goalpost structure. They are also replaceable, supporting long-term visibility and easier upkeep in busy operational areas. As a result, the opening becomes easier to read and better protected during daily operations.

Giraffe Goalpost System Installation on suitable concrete floors

Giraffe Goalpost is designed for quick and practical installation, with fixings provided. The system fixes to a suitable concrete floor using M16 x 150mm or M20 x 180mm throughbolts, depending on the final height and width of the unit.

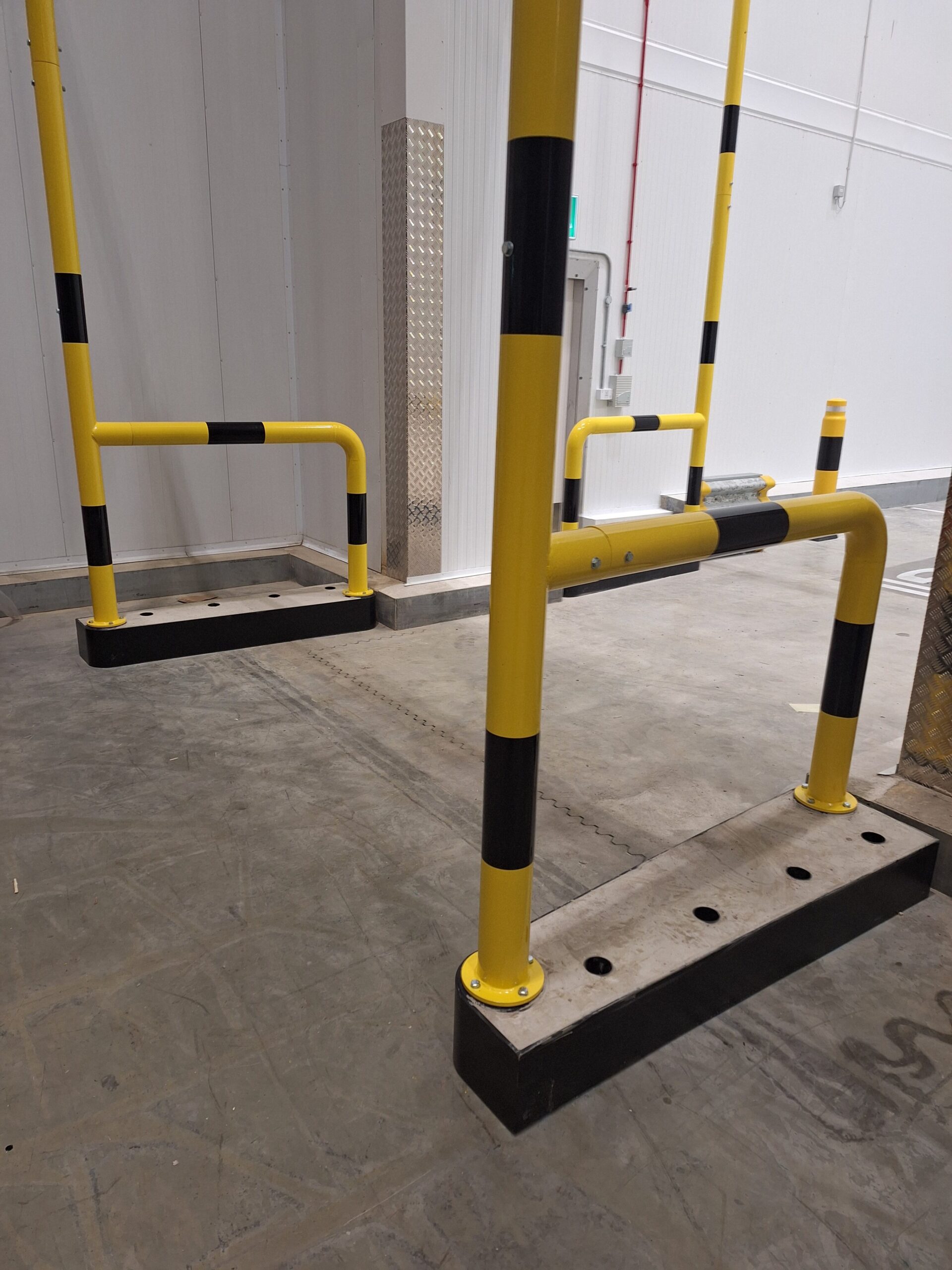

The base measures 1200mm long x 213mm wide x 200mm high. Each unit includes 6x Ø24mm fixing holes for secure floor anchoring. Drill requirements are Ø16mm hole diameter with 85mm minimum embedment, subject to final anchor selection, unit size and site conditions.

Suitable for chilled, freezer and food production environments

Doorway protection in food production and cold storage environments needs to support demanding operational conditions. Giraffe Goalpost can be used in ambient, chilled and freezer environments, making it suitable for a wide range of warehousing, logistics and production sites.

Typical applications include blast freezer entrances, cold store doorways, food production facilities, loading bay openings and rapid-rise doors. This makes it particularly useful where high-value doors, temperature-controlled zones or critical access points need protection from repeated MHE movement.

Where Giraffe Goalpost System is specified

Giraffe Goalpost is specified where vehicle strikes could damage critical doorways, structures or overhead services. Typical applications include loading bays, rapid-rise doors, blast freezers, cold stores, racking lane entrances, goods-in areas, warehouse door openings and structural access points.

It is especially useful in high-traffic areas where forklifts and MHE move through the same access route many times per shift. It also suits sites where damage to doors or structural openings could disrupt operations, affect temperature control or increase maintenance costs.

Supporting compliance and duty of care

Under the Health and Safety at Work Act 1974, employers must ensure, so far as reasonably practicable, the health, safety and welfare of employees at work. The Workplace (Health, Safety and Welfare) Regulations 1992 also require traffic routes to be suitable for the people and vehicles using them. In addition, PUWER 1998 requires work equipment to be suitable for its intended use and maintained in an efficient state, which is relevant where MHE operates around fixed structures, doors and access points.

Giraffe Goalpost provides a practical physical control measure for protecting critical access points from MHE impact. For H&S managers, facilities managers, operations teams, specifiers and contractors, specifying doorway protection helps demonstrate a proactive approach to workplace transport risk, building protection and site organisation. The result is clearer vehicle boundaries, reduced doorway damage and safer movement across the site.
