Controlled HGV alignment for raised loading docks

HGVs reversing onto raised loading docks need clear physical guidance. Without it, drivers can misalign trailers, strike dock structures or clash wheel rims against guide systems. This can increase vehicle repair costs and create avoidable disruption at busy loading bays.

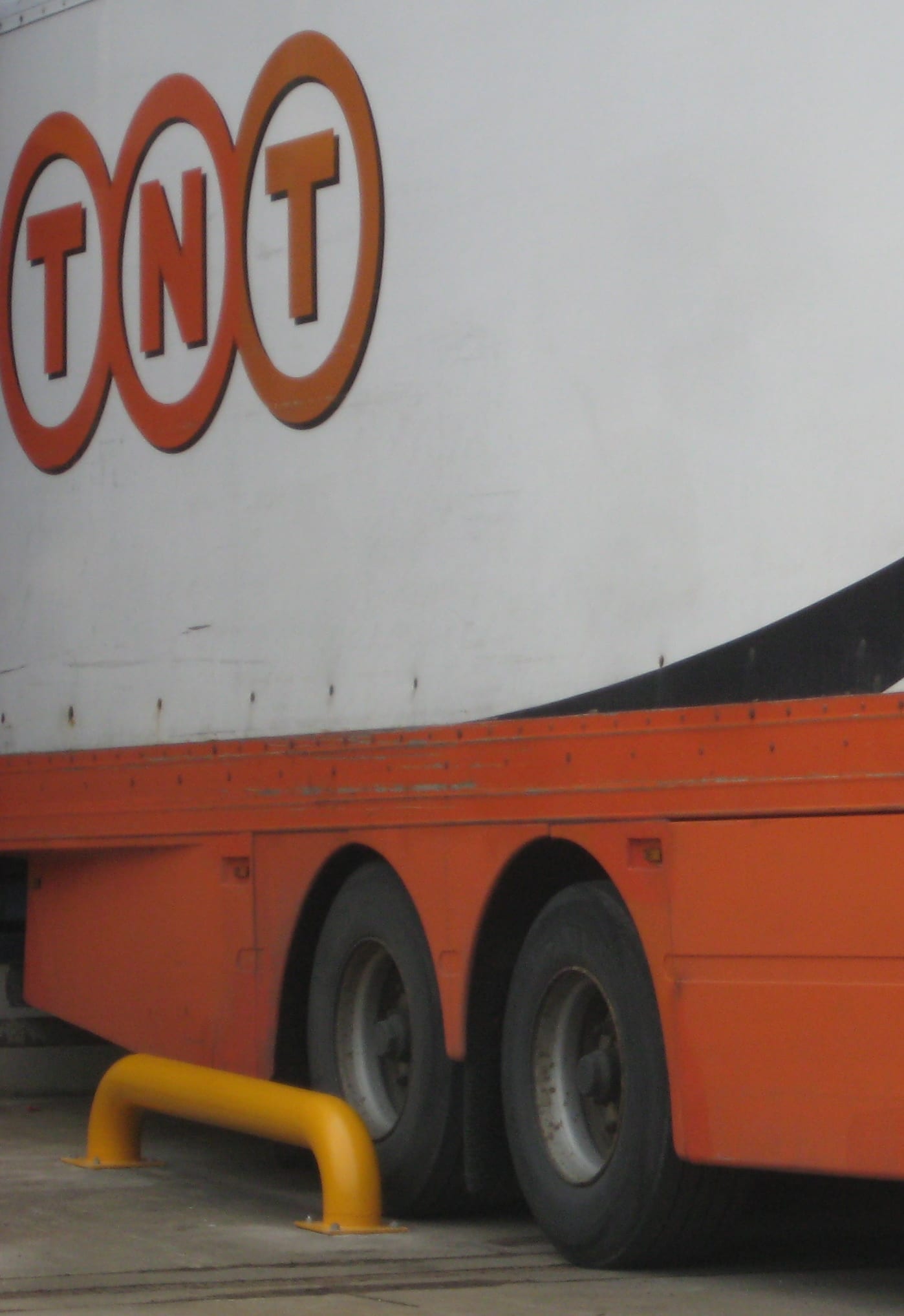

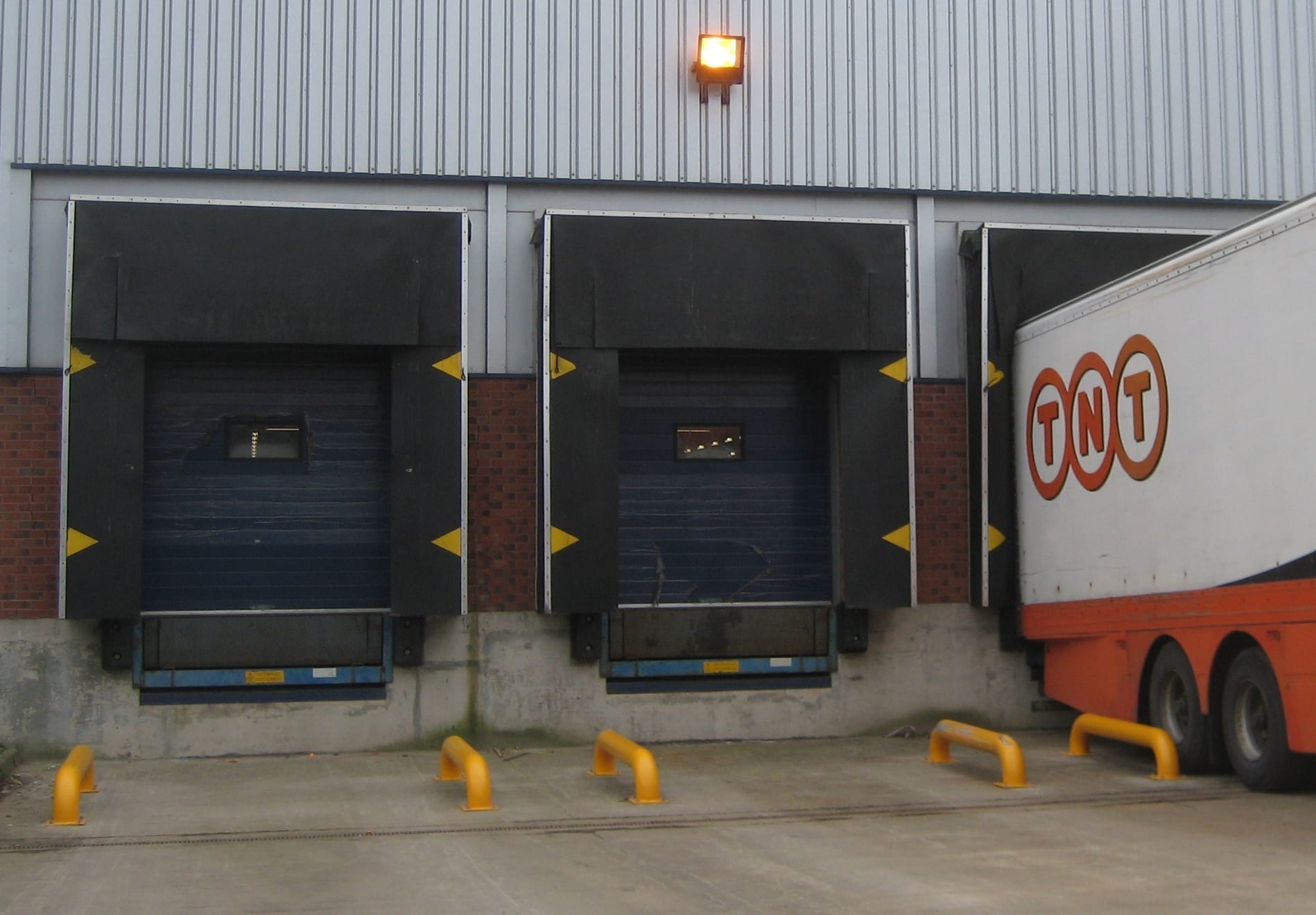

HGV Straight Dock Wheel Guides provide a physical alignment aid for loading dock approaches. They guide HGVs into the correct position as they reverse towards the dock. This supports safer, more consistent trailer positioning and helps reduce the risk of wheel rim contact with the guides.

Steel construction with finish options

Loading bay guide systems operate in exposed areas with regular vehicle movement, surface water and daily use. HGV Straight Dock Wheel Guides are manufactured from circular hollow section steel, giving the system the structure needed for loading dock alignment applications.

The guides are available with a hot dip galvanised finish to BS EN ISO 1461 or a yellow powder-coated finish. This gives specifiers and site teams options depending on the project environment, visibility requirements and finish preferences. Welded end caps also provide a finished detail at exposed rail ends.

High-visibility guide ends for dock approaches

Dock approaches need to be visible to drivers in different light conditions. HGV Straight Dock Wheel Guides include vibrant yellow nose cones to improve visibility at the leading ends of the guide. This helps drivers identify the guide position as they reverse towards the bay.

Leading ends are also fitted with diamond grade yellow reflectors. This gives drivers an additional visual marker in low-light conditions, poor weather or early morning and evening operations. As a result, the guide system remains easier to identify throughout changing site conditions.

Straight guide profile for loading bay positioning

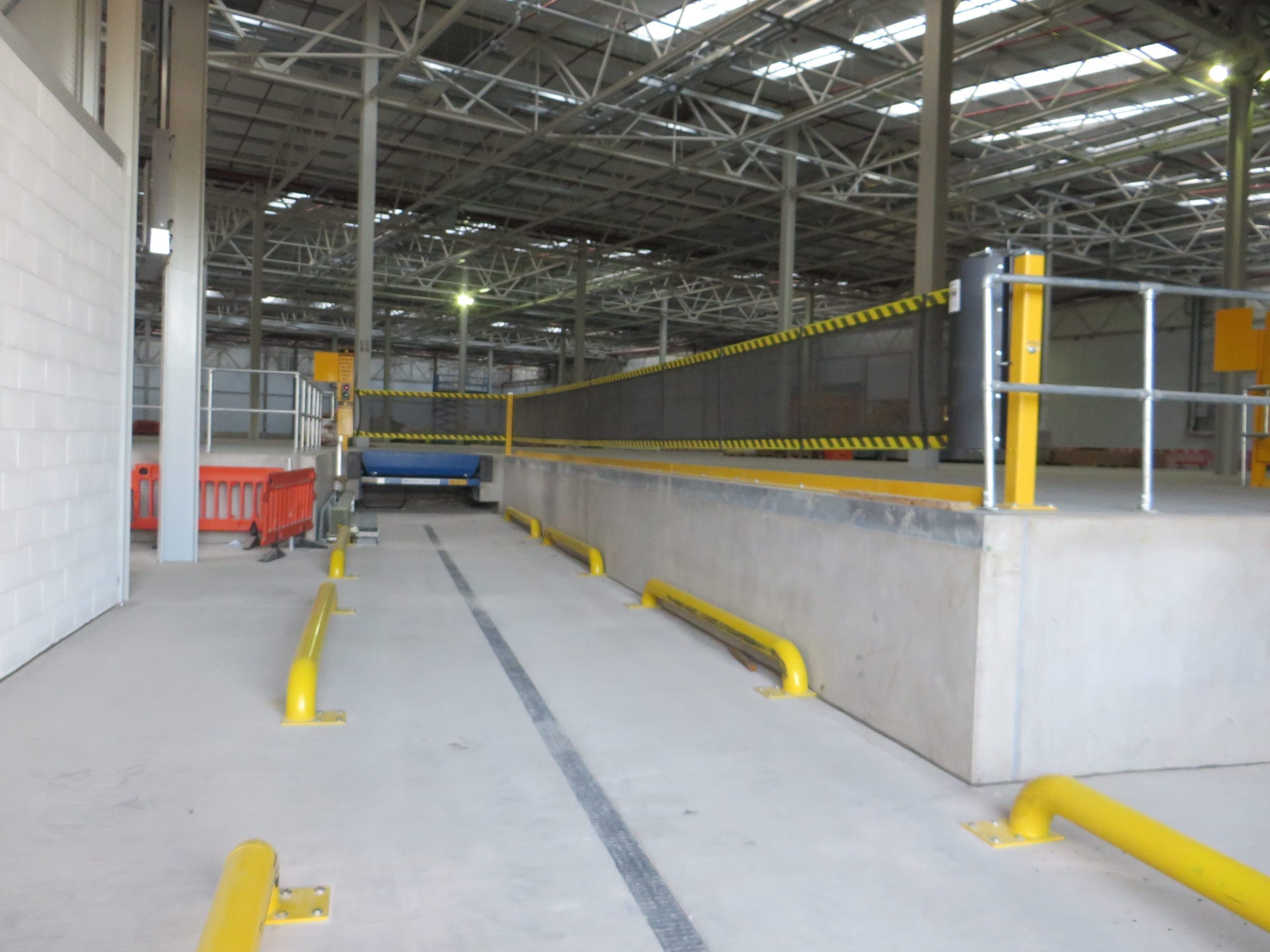

Loading docks vary by trailer type, dock height and approach layout. Because of this, HGV Straight Dock Wheel Guides are designed to support controlled trailer positioning where a direct guide profile is required. The straight format helps maintain alignment as the vehicle approaches the dock.

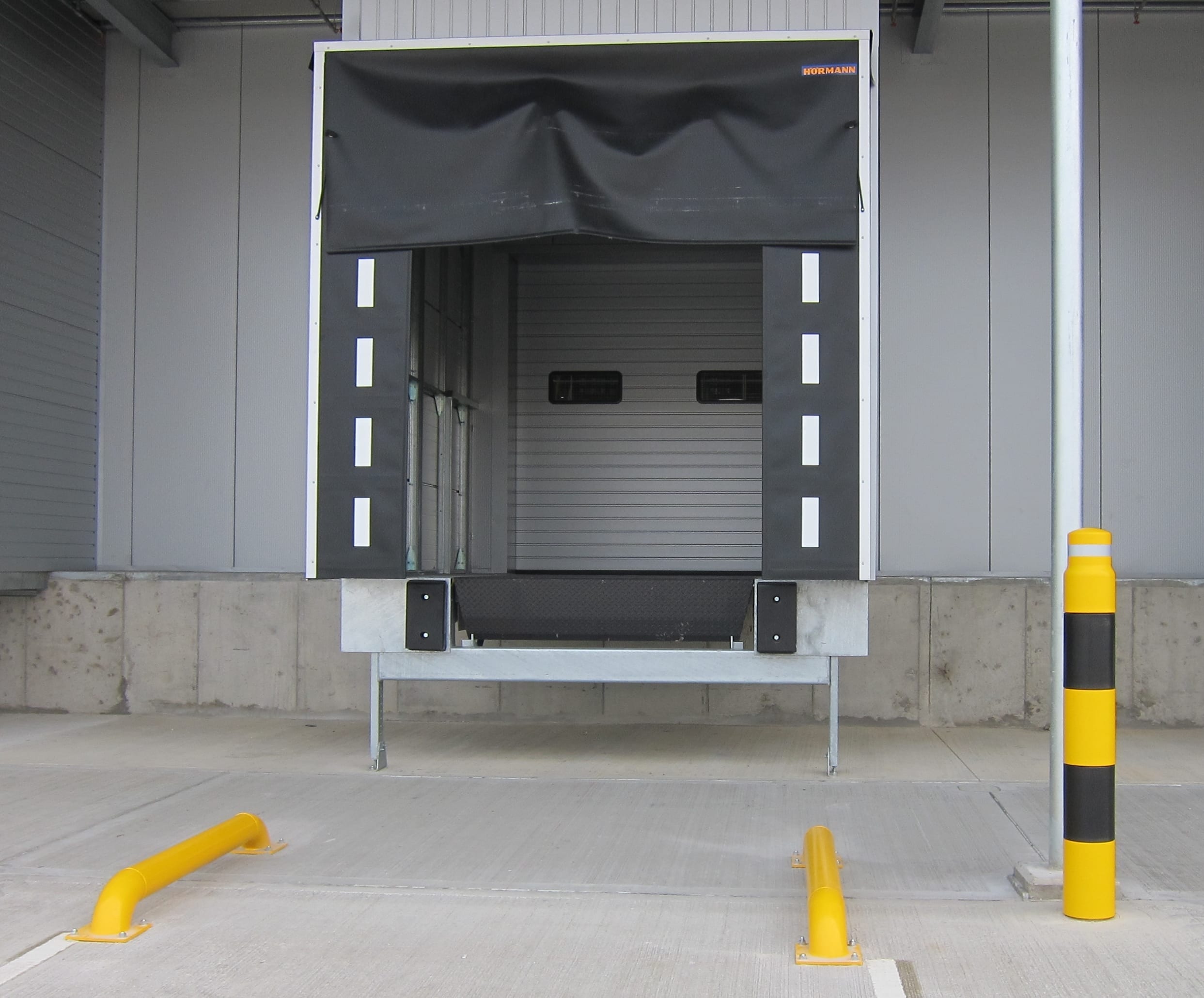

Standard units are 2000mm long. Low level double decker applications use a 150mm high guide, while high level artic trailer applications use a 200mm high guide. The typical internal width for setting out is 2600mm, although custom widths can be set to suit site-specific dock layouts.

Cranked HGV Dock Wheel Guides are also available for sites where a funnel-style approach is more suitable. This gives buyers a clear alternative where the dock layout, vehicle approach or existing bay design requires a cranked guide profile.

Bolt-down fixing to suitable concrete slabs

HGV Straight Dock Wheel Guides are designed for bolt-down installation to a suitable concrete slab. Each guide fixes using 4x M16 x 150mm floor anchors, giving installation teams a clear fixing specification.

This bolt-down format suits new loading bay installations and retrofit upgrades where dock guidance needs to be added or replaced. It also supports site-specific fabrication, allowing the guide system to be adjusted for different dock widths, trailer types and operational layouts where required.

Where HGV Straight Dock Wheel Guides are specified

HGV Straight Dock Wheel Guides are specified at raised loading docks where HGVs, artic trailers and double decker trailers need clear alignment during reversing. Typical applications include distribution centres, logistics hubs, fulfilment centres, manufacturing sites, goods-in areas, service yards and commercial loading bays.

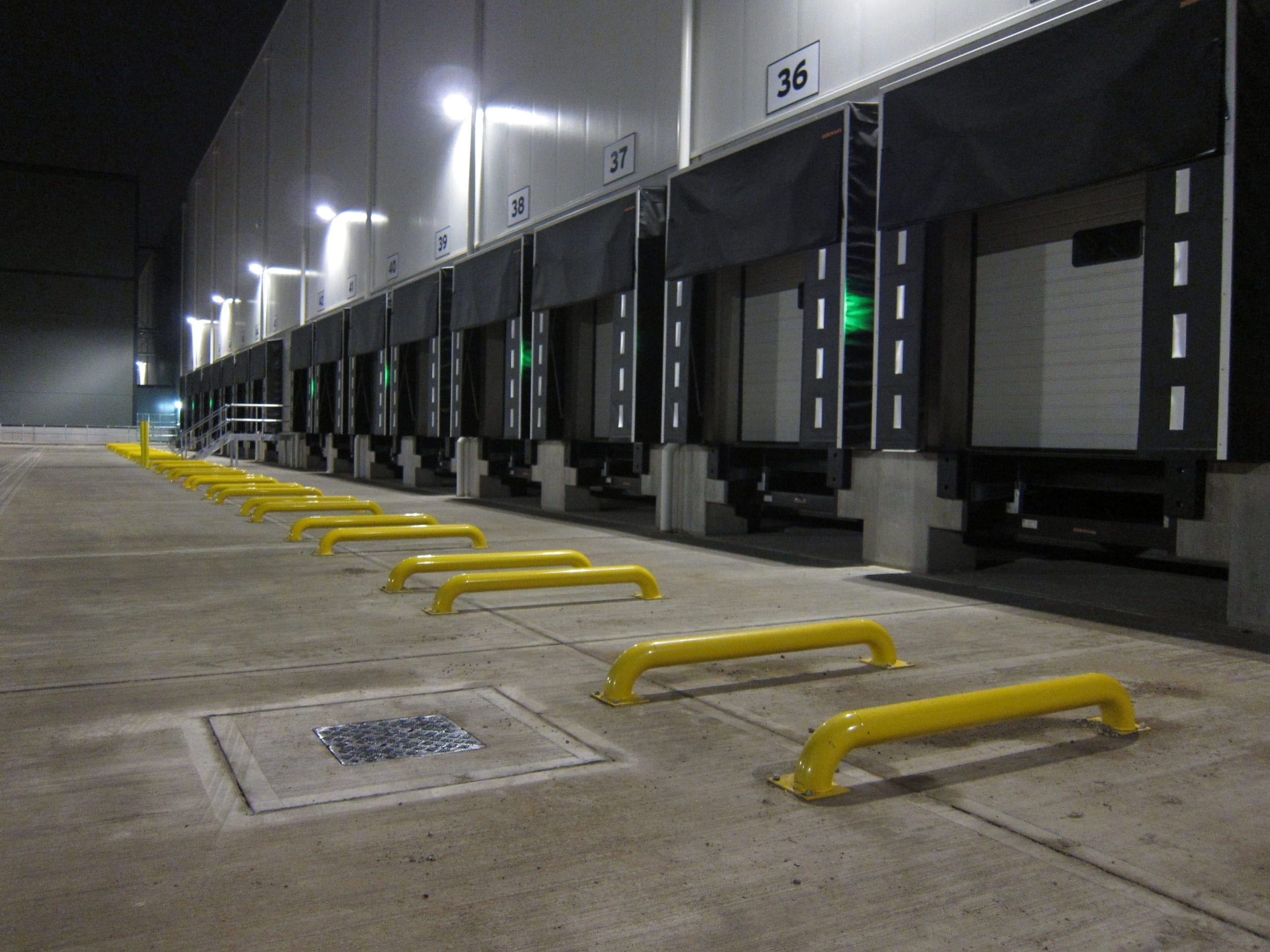

They are especially useful where drivers need repeatable positioning guidance across multiple bays. They also suit sites where wheel rim damage, dock strikes or inconsistent trailer alignment has become a recurring issue. The result is a clearer dock approach and more controlled vehicle positioning.

Supporting compliance and duty of care

Under the Workplace (Health, Safety and Welfare) Regulations 1992 and the Health and Safety at Work Act 1974, site operators and employers must manage foreseeable risks from workplace transport, loading operations and vehicle movement. This includes keeping traffic routes, loading areas and vehicle approaches suitable for the vehicles using them.

HGV Straight Dock Wheel Guides provide a practical physical control measure for guiding HGVs into raised loading dock positions. For H&S managers, facilities managers, logistics teams, contractors and site operators, specifying dock wheel guides helps demonstrate a proactive approach to vehicle alignment and loading bay safety. The result is improved trailer positioning, reduced wheel rim damage and safer loading dock operations across the site.
