Protection Bollard

Product Details

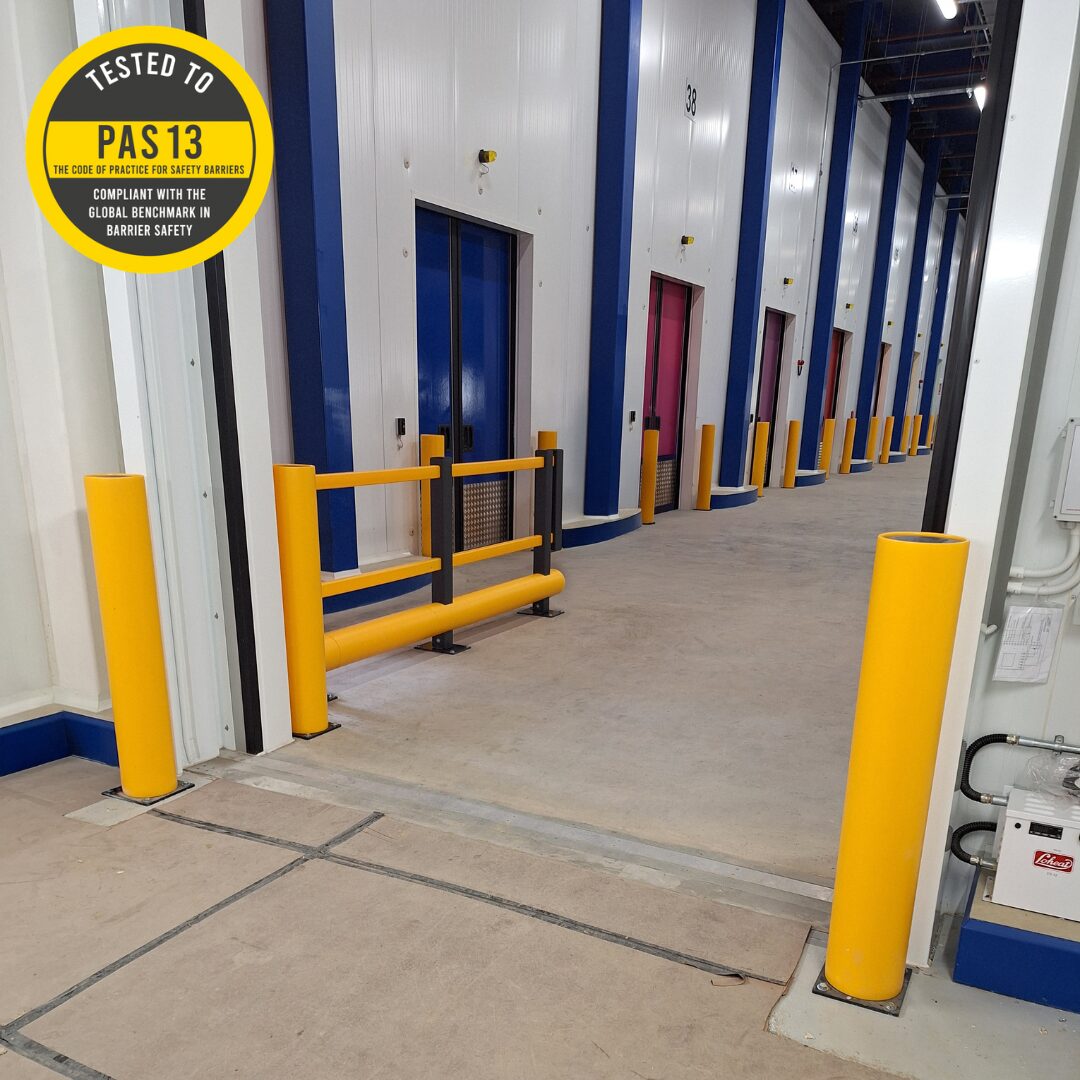

PAS 13 tested protection for corners, entrances and structures

The Protection Bollard is a cost-effective, high-visibility impact protection bollard tested by IWS Group to PAS 13 standards using a weighted pendulum testing rig. Testing demonstrated that at a 90° impact angle the bollard absorbed 6,000J of energy with a measured deflection of 272mm. These results are equivalent to a 4 mph impact from a 3,500kg forklift. All testing was conducted using M12 Safety Plus Anchors, confirming performance under standard warehouse conditions. For specifiers, H&S managers and facilities teams requiring documented impact performance, the Protection Bollard provides that evidence in full.

This level of testing matters. PAS 13 is the globally recognised code of practice for the impact testing of vehicle-restraint products. Testing to this standard means the performance data is based on a recognised and repeatable methodology rather than an unverified claim. Specifiers and procurement teams have a reliable, documented basis for their safety case.

HDPE construction that deflects, absorbs and reforms

The Protection Bollard is manufactured from high-density polyethylene with a steel core. The HDPE outer shell deflects under impact and reforms its shape after contact, meaning the bollard continues to provide protection after routine collisions without requiring immediate replacement. Unlike metal alternatives, minimal force transfers into the floor on impact. This reduces floor damage and the maintenance costs that come with it over the lifetime of the installation.

The material is non-toxic, fully recyclable and impervious to moisture, mould and most solvents. It performs across ambient, chilled and freezer environments and is suitable for use in food production facilities where hygiene and material safety are additional requirements alongside physical protection. Low maintenance is built into the design. These bollards only need replacing when frequent, major impacts have occurred.

Visibility, heights and installation

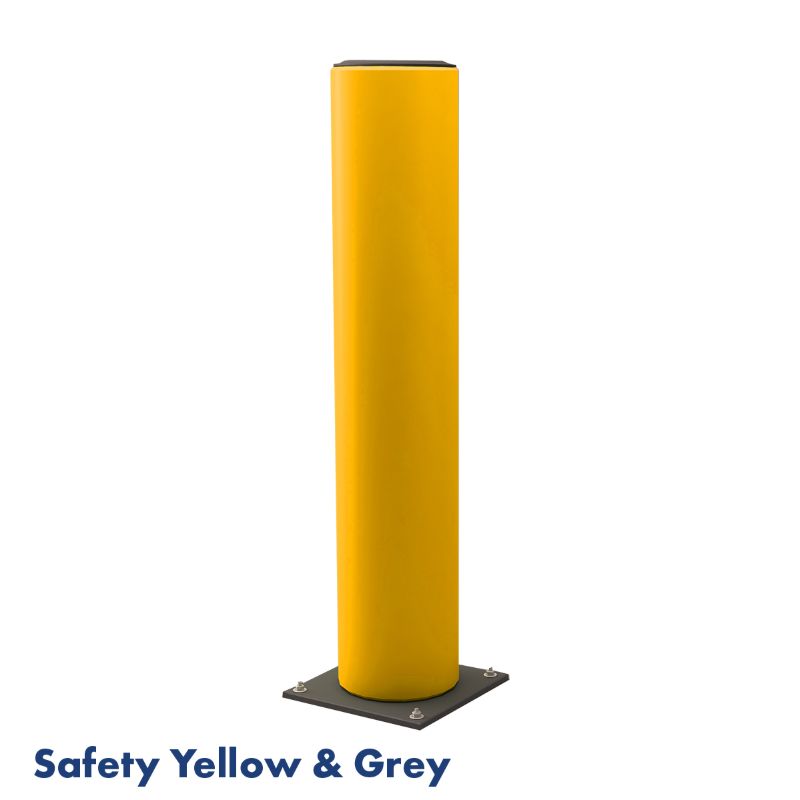

The Protection Bollard is supplied in Safety Yellow and Grey as standard, providing a clear visual reference for MHE drivers and warehouse teams at known risk points. Bespoke colour options are available on request, subject to minimum order quantities.

Three height options are available: 600mm, 900mm and 1200mm, covering the full range of protection requirements from low-level vehicle contact to full-height structural protection. The bollard has a 200mm diameter and a 240mm footplate width. Each bollard fixes using 4x M12 x 120mm Safety Plus Anchors, with all fixings supplied. Installation is straightforward and keeps operational downtime to a minimum.

Where the Protection Bollard is specified

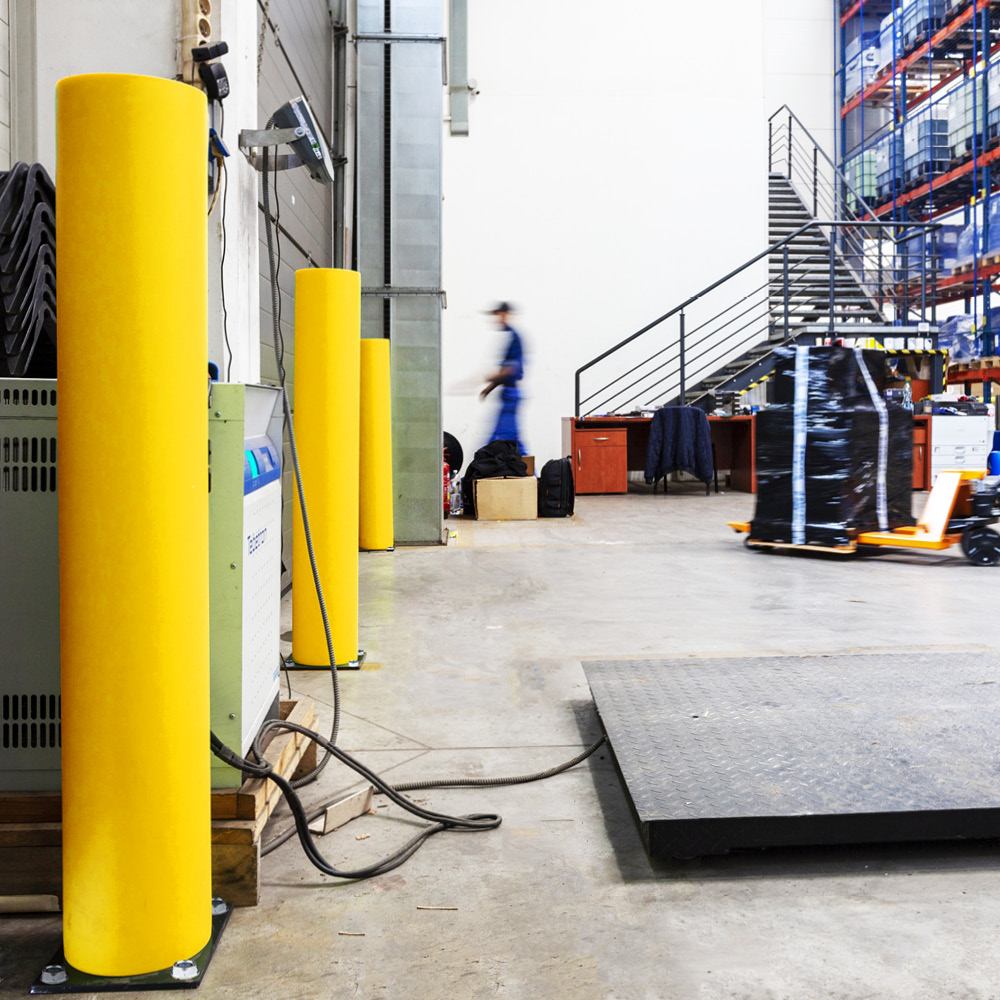

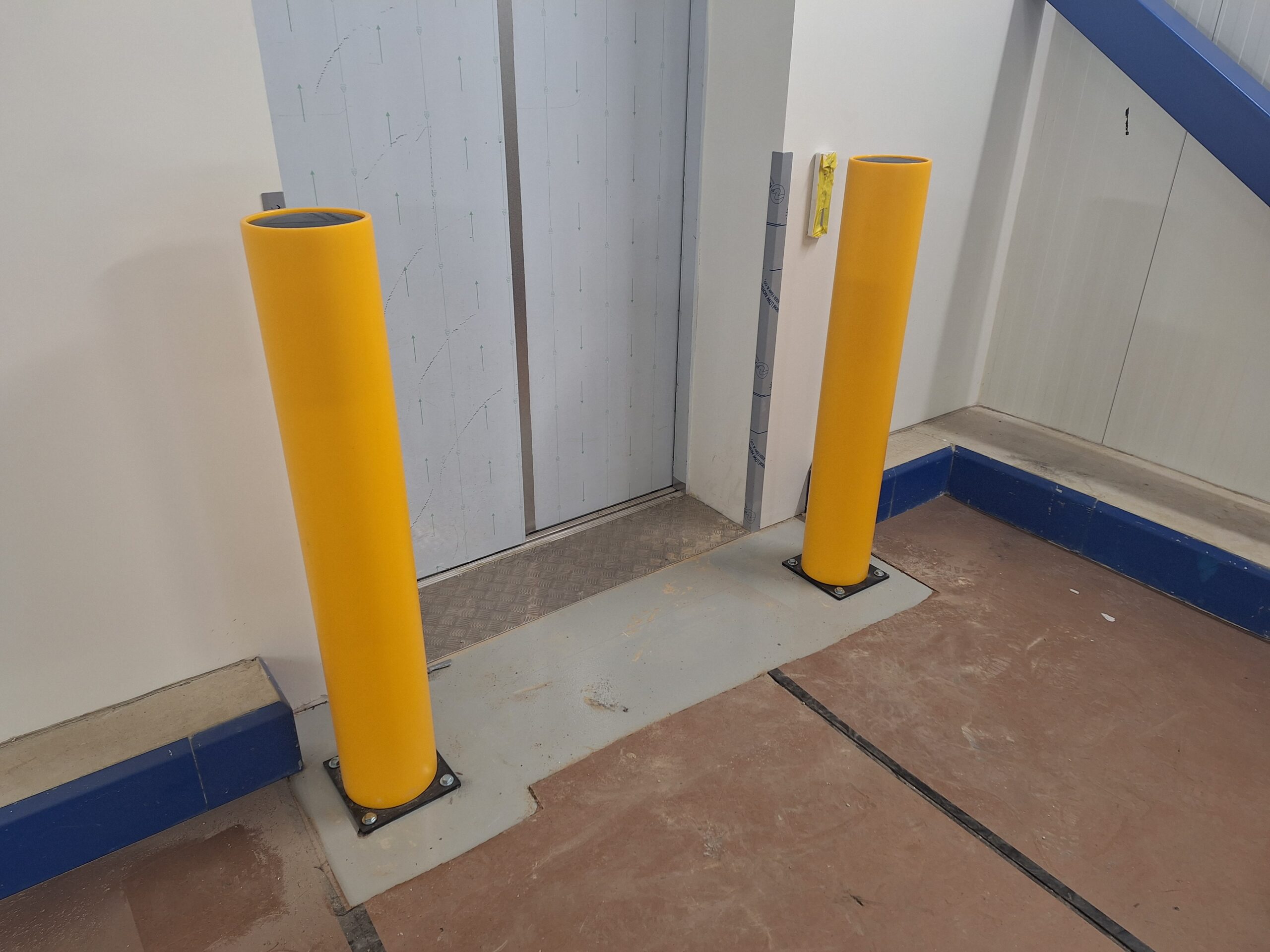

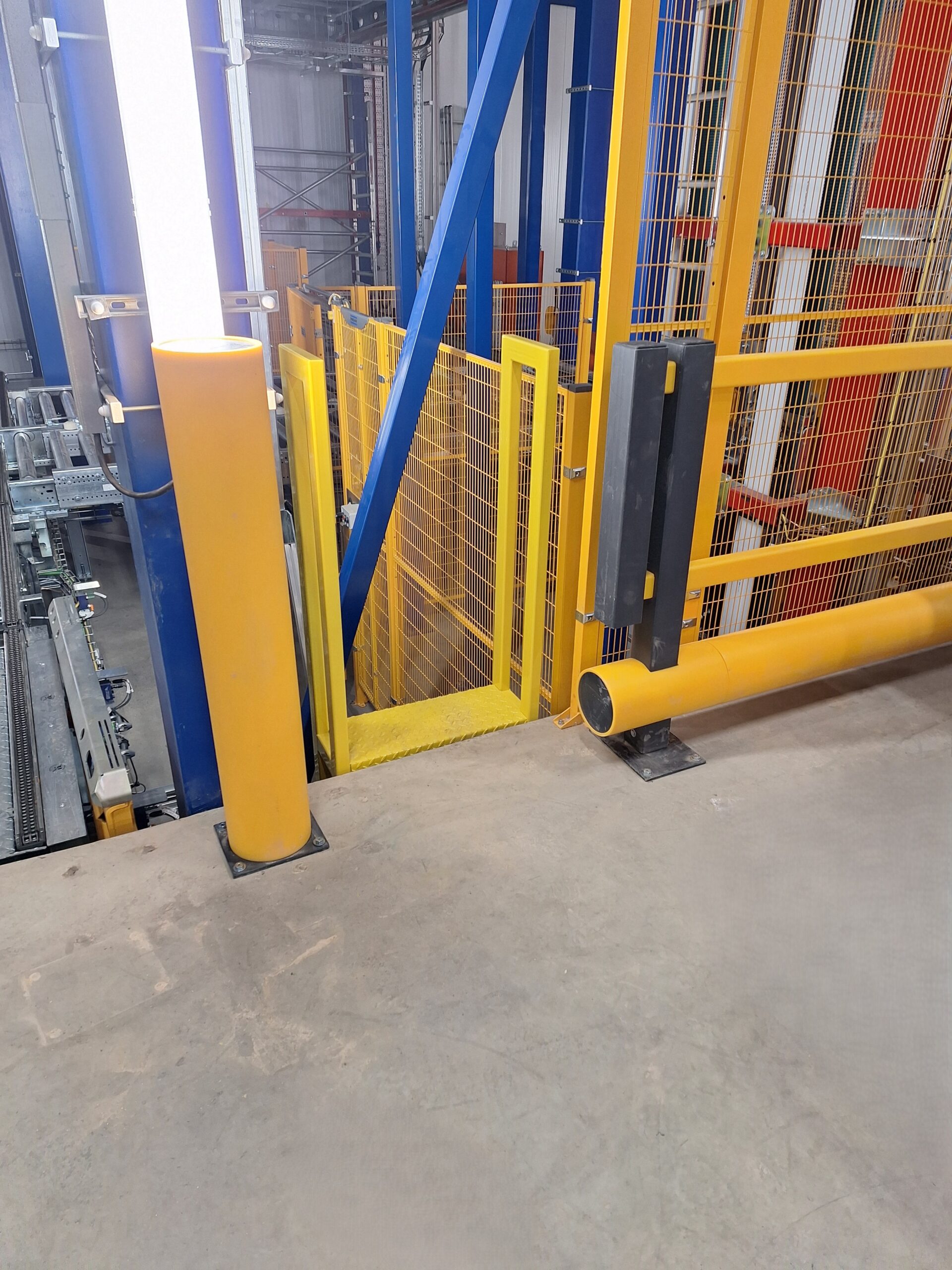

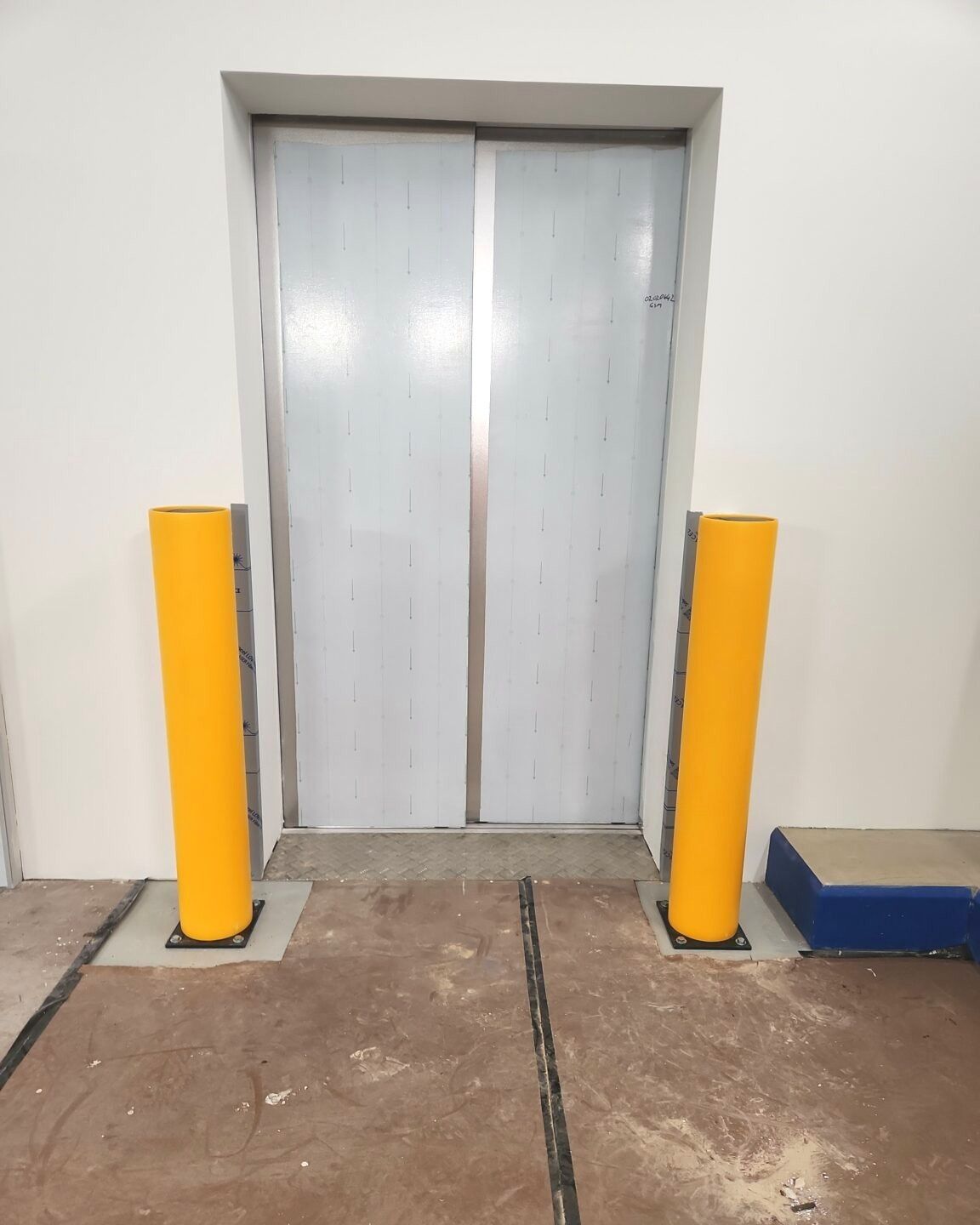

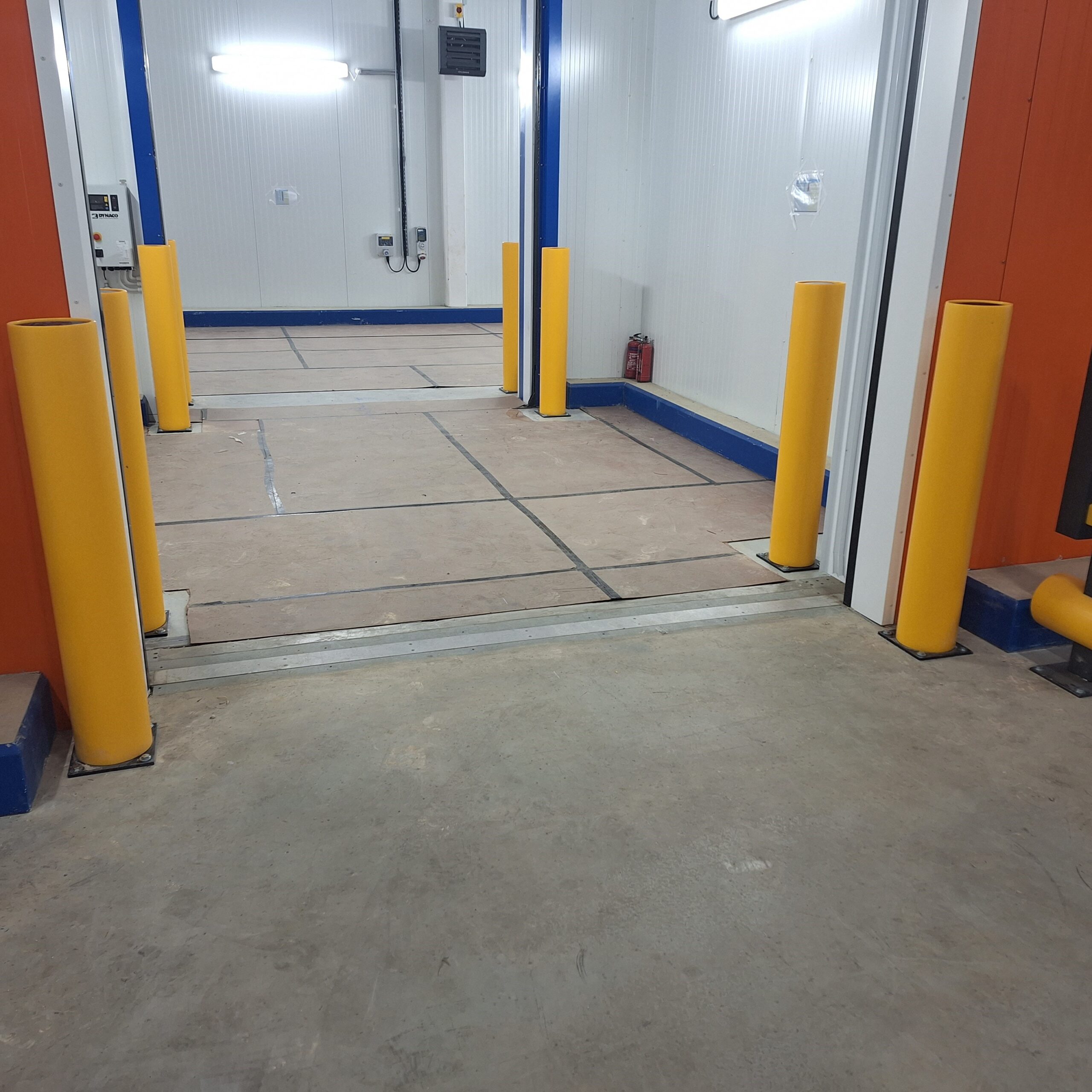

The Protection Bollard is used at corners, building entrances, structural columns, racking ends and pedestrian access points in warehouses, distribution centres and industrial facilities. Its HDPE construction makes it particularly well suited to locations where repeated low to medium level impacts are expected and a cost-effective, low-maintenance solution is the priority. It is suitable for both internal and external use and performs across the full range of environments from ambient warehousing to cold storage and food production.

Supporting compliance and duty of care

Under the Workplace (Health, Safety and Welfare) Regulations 1992 and the Health and Safety at Work Act 1974, employers are required to keep traffic routes safe and take reasonable steps to protect building fabric, assets and people from foreseeable vehicle impacts. At corners, entrances and structural points where vehicle contact is a known and recurring risk, a tested and certified physical control measure is the most defensible approach to managing that risk.

PAS 13 is the only global code of practice produced by the British Standards Institution (BSI) that advises on barrier types suitable for separating vehicles and pedestrians in workplace environments. Testing to PAS 13 standards means the performance data is independently verified and based on a recognised methodology, giving specifiers and procurement teams a reliable basis for their safety case.

The Protection Bollard provides documented impact performance data to support the safety case for any site. For H&S managers, facilities teams and specifiers, PAS 13 testing provides evidence of performance that satisfies the requirements of risk assessments, insurance reviews and third-party safety audits. The result is fewer incidents, lower repair costs and a stronger safety record across the facility.
